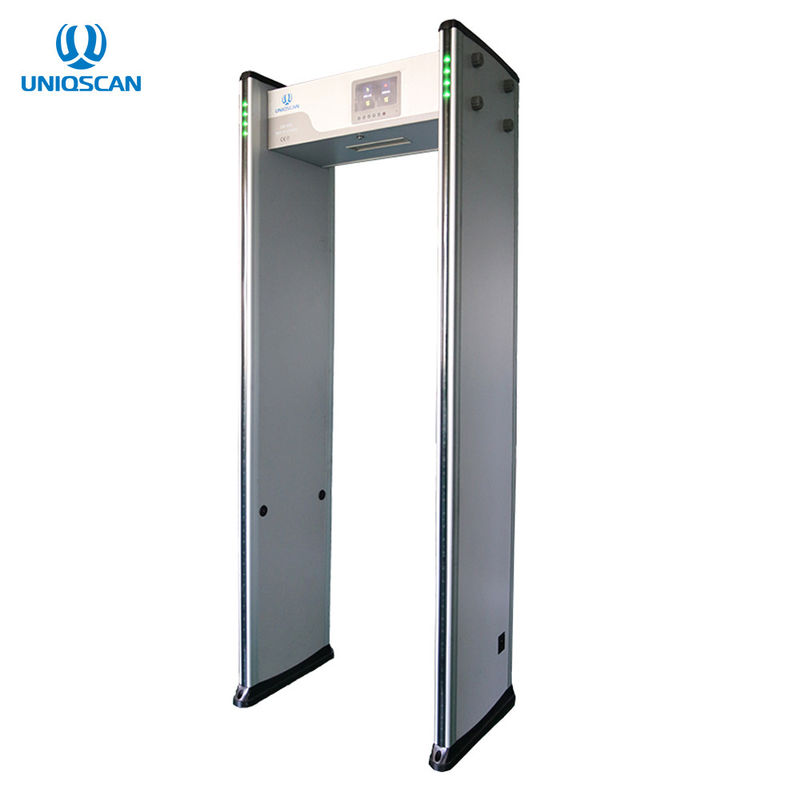

High Sensitivity 33 Zones Walk Through Body Scanners

Ultra High Sensitivity 33 Zones Security Walk Through Gate Metal Detector With Infrared Remote Control

Parameters :

CHARACTERISTIC & FUNCTION:

• 33 detecting zones, Simultaneous alarm from multi- zones;
• Sensitivity adjustable: Each zone has 999 sensitivity level 0-999 adjustable
• 7 inch color LCD screen
• Infrared remote control
• Using high density fireproof material
• Automatically count passengers and alarm times
• PASS and ALARM count: up to 9999
• High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
• 15 preset programs for security applications
• Alarm volume range from level 0 to 9
• Alarm tones: Change from 1 to 9
• 100 frequencies for option. To work with neighbouring gates at 50cm
• Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
• Detecting speed: up to 100 passenger/ min.
• Password protection, only the authorized person can operate.
• Easy assembly: designed with only 2 pieces cables and 8 screws,
• Modularization design,easy for maintenance and replacement.
• Sensitivity Test piece: One yuan Coin, omnidirectional detection
• Network support
• Can be customized 36 zones
• 4-8 hours backup battery (Option)
•

Applications:

• Commercial buildings;
• Factories(to find needle in clothing, shoes, bags)
• Courthouses;
• Embassies;
• Government buildings;
• Military installations;
• Prisons;
• Hotels;
• Schools;
• Convention centers;
• Security checkpoints.
• Excellent system for schools, hotels, convention centers and event-based security requirements

Neutral Packing:
Carton Dimension L*W*H(mm)
Door Panel:2260*650*260mm
Control Unit:780*390*250mm
Gross weight:65kg
