Product Details:
Payment & Shipping Terms:
|
| Product Name:: | X Ray Cargo Scanner | Conveyor Speed:: | 0.22m/s |
|---|---|---|---|
| Power Wastage:: | 1.0 KW (Max) | Tunnel Size :: | 800 (W) ×650(H) Mm |
| Conveyor Max Load:: | 200kg | Wire Resolution:: | 40AWG |
| Steel Penetration:: | 38mm | Single Inspection Dosage:: | <1.15μGy |
| Highlight: | baggage x ray machine,airport x ray machines |
||

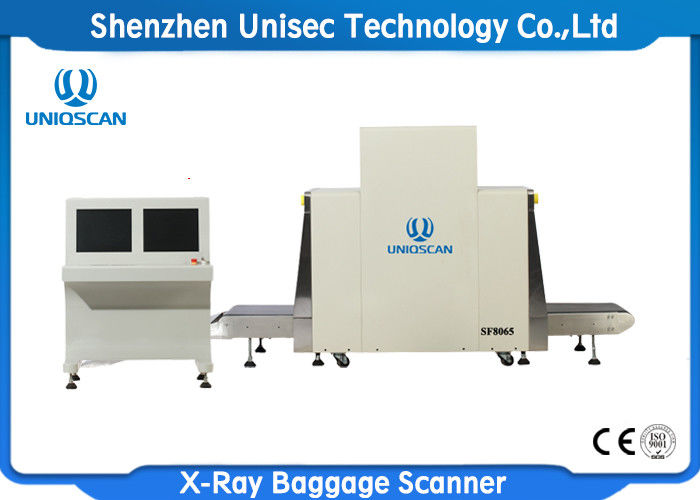

High resolution x-ray security inspection,dual energy x-ray luggage scanner 8065 with CE ISO certificate
General specification:
High resolution x-ray security inspection,dual energy x-ray luggage scanner 8065 with CE ISO certificated
General Specifications
Tunnel Size :800 (W) ×650 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600
Conveyor rolls in both two directions
X-RAY GENERATOR
Orientation: Upward
Tube Current: 0.4~0.7mA(adjustable)
Anode Voltage: 80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%
Conveyor rolls in both two directions
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector
24bit
Single energy
Image Performance System:
Display: High-resolution 19 inch color LCD display
