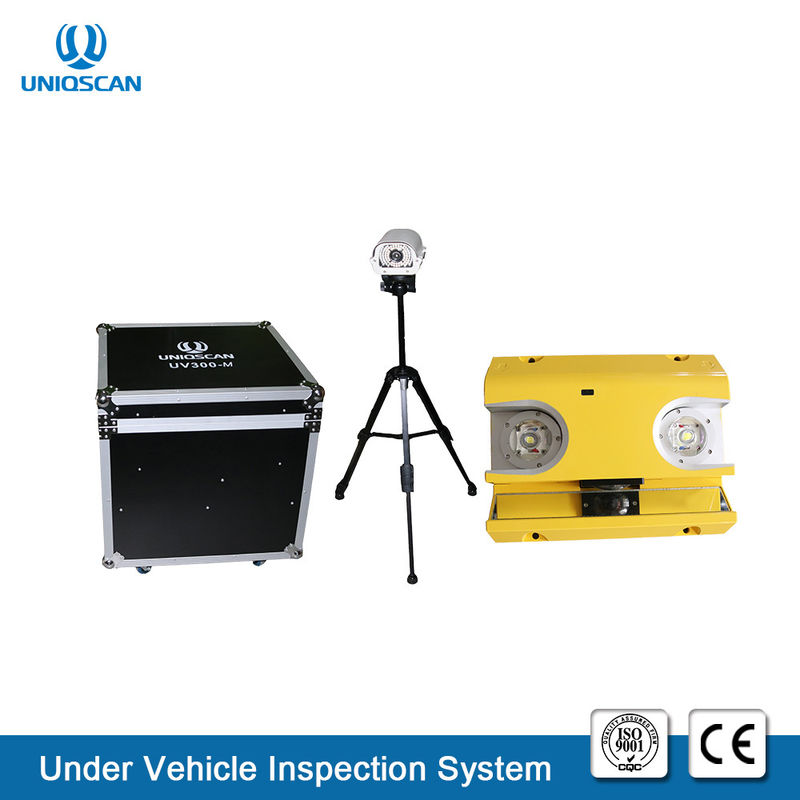

High Resolution CCD Camera Mobile Car Inspection Detector Under Vehicle Surveillance System

Large Image : High Resolution CCD Camera Mobile Car Inspection Detector Under Vehicle Surveillance System

Product Details:

Place of Origin:	China
Brand Name:	Uniqscan
Certification:	CE.ISO
Model Number:	UV300M

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiation
Packaging Details:	Wooden case 900mm680mm990mm
Delivery Time:	5-7work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1500pcs/month

Contact Now

Detailed Product Description

Store Or Load Time:	<1 Second	Vehicle Image Local Magnification:	> 2 Times
Vehicle Image Scaling:	16 Times	Vehicle Image Storage Format::	BMP Or JPEG
Communication Interface:	RS232/RS422	View Angle:	175 Degrees
Highlight:	under vehicle bomb detector , under car bomb detector

High Resolution CCD Camera Mobile Car Inspection Detector Under Vehicle Surveillance System Security Equipment

Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.
It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.
UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human
resources.

UV300-F
Parameters	Store or load time	<	1 second
	Vehicle Image local magnification	>	2 times
	Vehicle Image scaling	times	16
Main performance parameters	System interface language	(can be customized)	English
	Scene image display	≥	1 channel
	Vehicle speed	1-60km/h, suggest speed	less than 30km/h
Hydraulic system	View angle	degrees	175
	Image Longitudinal resolution	pixels CCD	2048
	Power Supply	Hz	AC110V-240V/50-60

Main Features

Software:

1. using black and white Array CCD scanning technology Dynamic imaging;

2. Scanning Image resolution: ≥ 2048

3. Store or load time: <1 second;

4. Vehicle image display mode: large format transverse;

5. System interface language: English (can be customized);

6. Display resolution: adapt to a variety of display resolution;

7. Vehicle image data transfer interface: NetworkRJ45

8. Scene image display: ≥1 channel

9. Dedicated image processing functions

10. License plate recognition (need customer provide the SDK LPR software

of the exported country, we can integrate it to the UVSS without extra cost )

Computer:

1. Display: 22 inch LCD Screen

2. CPU: INTEL Quad-Core Processor

3. Motherboard : dedicated motherboard

4. Memory : DDR3 , more than 2GB

5. Hard disk : 500G high-speed hard disk

6. Working voltage : AC220V 50/60Hz

7. Data transmission cable length : 10m (standard)

Vehicle image system control equipment and environmental adaptability:

1. Scan mode: automatic , non- external trigger scanning;

2. The maximum scan rate:18kHz;

3. Vehicle speed:≤30km/h;Loading weight: 30 Tons

4. View angle:180 degrees

5. Scanner connecting cable: 10 meters (can be customized more than 10m)

6. Lighting components : Two single sealed LED surface light source ; Life : 50,000h

7. Under Vehicle image scanner with a unique open-wide field scan design;

8. Working voltage: DC24V

9. Power Supply:AC220V/50-60Hz

10. Structure design:single sealed design;

11. Environment temperature: -20 degrees - +55 degrees

12. Appearance: Aluminum copper alloy composite material
