Product Details:
Payment & Shipping Terms:
|
| Model: | 10080 | Wire Resolution: | 40AWG |
|---|---|---|---|
| X Ray Leakage: | <0.15 μGy/h | Regeration: | Auto&hand |
| Anode Power: | 70-260v | Film Safety: | Guarantee ISO1600 Film |
| Image Resolution: | 1024 * 1280 Pixel | Anode Voltage:: | 140-160Kv |
| High Light: | airport luggage scanner,airport x ray scanner |
||

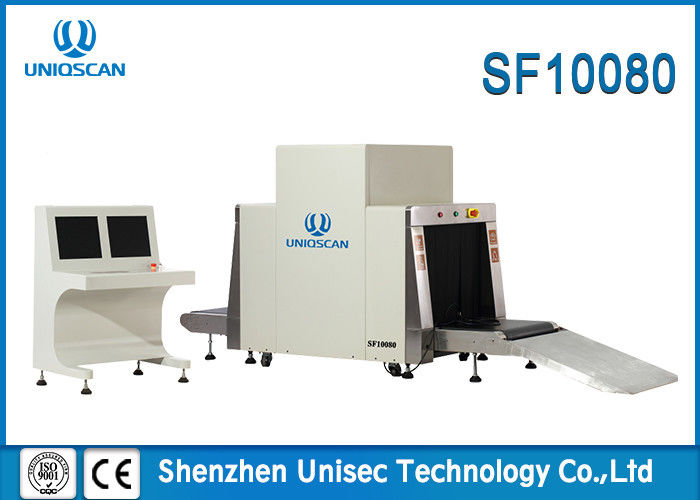

High Powerful 10080 X Ray Airport Baggage Scanner Single Operation Table
Competitive Advantage:
Specifications:
| Tunnel Size: | 1000(W)*800(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 150kgs |
| Single inspection dosage: | < 1.0μGy |
| Wire Resolution: | 40AWG |
| Penetration: | 40mm Steel |
| Film Safety: | Guarantee ISO1600 Film |
| X-ray Leakage: | <0.1 μGy/h (at a distance of 5cm From external housing) |
| Generate direct: | Upward |
| Generate angle: | 80 degree |
| Anode Voltage: | 140-160Kv |
| Anode power: | 0.7 to 1.2mA |
| Cooling / Duty Cycle: | Oil Cooling /100% |
| X-ray Sensor: | L-Shaped Photodiode Array (mono-energetic), 24bit Deep |
| Monitor: | High Resolution Color, LCD Accord, 19 inch |
| Image Processing: | Edge enhancement, image strengthening, image lightening, |
| Image Grey Level: | 4096 |
| Image Max Resolution: | 1024 * 1280 pixel |
| Image Processing: | 24bit for processing real time |
| Image storage: | Storage 100000 pictures in real time |
| Zones & Zoom: | 64 Image regions, 2, 4, 8, 16,32,64 Times Enlarge, Whole screen |
| Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
| Operation Power: | 220VAC(±10%)50±3Hz |
| Power Consumption: | 1.0 KW (max), 0.3KW(working) |
| Noise: | <60db |
Application:
| End user | Recommend X Ray Baggage Scanner model NO. |
| Airports, Transport terminals | SF6040; SF6550; SF10080; SF100100 |
| Factories (to find needle in clothing, shoes, bags), | SF5030; SF5636; SF6040; SF6550 |
| Courthouses, Embassies, Buildings | SF5030; SF5636; SF6040; SF6550 |
| Military installations | SF5030; SF6040; SF6550; SF8065; SF100100 |
| Prisons, Hotels, Schools, Convention centers | SF5030; SF5636; SF6040; SF6550; SF10080 |
| Security checkpoints,Special events location | SF5030; SF6040; SF6550; SF8065; SF10080 |
