Product Details:
Payment & Shipping Terms:
|
| Brand: | Uniqscan | Model: | SF5030A |
|---|---|---|---|
| Conveyor Max Load: | 100 KG | Warranty: | 2 Years |
| Orientation: | Upward | Gross Weight: | 425 KG |
| Volume(CBM): | 2.265 | Tube Current: | 0.4~0.7mA |
| High Light: | airport luggage scanner,airport x ray scanner |
||

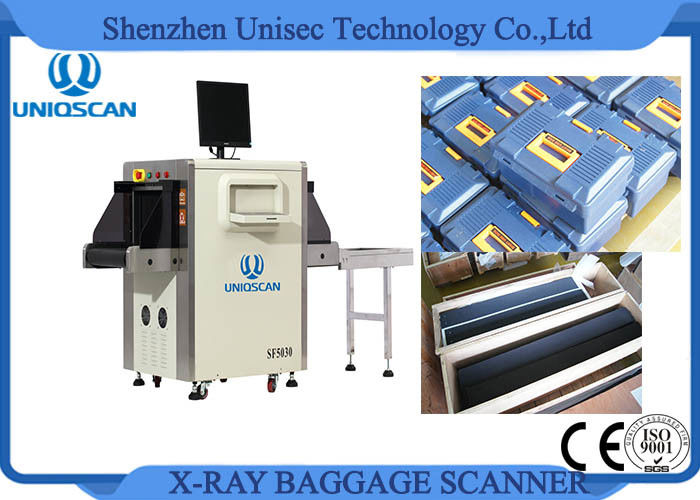

Tunnel Size 5030 X-ray baggage scanner for airport metro dual view high penetration
Our Service:
2 years warranty with free parts.
Free training on installation and maintaince.
More items can negotiation due to your requirements.
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<58DB
X-RAY Sensor:
L-shaped array detector 24bit
Model: SF5030A
General Specifications
Tunnel Size : 500 (W) *300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 230 kg
Single inspection dosage: < 1.5μGy
Leakage radiation: <0.1µGy/h
Wire Resolution: 40AWG
Steel Penetration: 38mm
Film Safety: For ISO 1600
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,
mixture in green
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status
