High-definition: | 19 Inches Hd LCD | Packaging: | Base Unit Carton Size: 76*49*26CM , Door Panel |
---|---|---|---|
Image Max Resolution: | 1024 * 1280 Pixel | Anode Voltage: | 140-160Kv |
Film Safety: | Guarantee ISO1600 Film | Image Processing: | 24 Bit For Processing Real Time |
Highlight: | airport luggage scanner,airport x ray scanner |

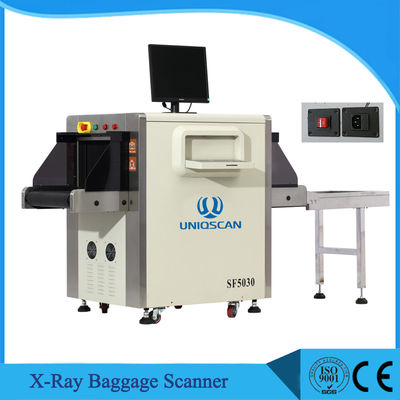

High Load 5030a X Ray Checked Baggage In Airport Security , Adjustable Conveyor Speed
Features
luggage scanner detector Model: 5030A------ Popular economic Version
The 5030A easily accommodates the inspection of hand baggage and parcels.
the 5030Ais ideal for use in mail-rooms, entrance halls, correctional and judicial facilities, schools and many other security sensitive areas, where contact-free inspection of pouches, bags, letters or packages is required.
Due to its small foot print and robust casters it is easily wheeled even through narrow spaces and over rugged terrain to any place where personal belongings and other items need to be screened.
General Specification | |
Tunnel Size | 500(W)*300(H)mm |
Conveyor Speed | 0.22m/s (adjustable) |
Conveyor Max Load | 170 kg |
Dose per Inspection | < 0.9μGy/h |
Resolution | < 0.078mm Copper Wire |
Spatial resolution | Level: dia1.3mm, Vertical: dia1.0mm |
Penetrate resolution | Di 0.511mm |
Penetration | 43mm Steel |
Film Safety | Guarantee ISO1600 Film |
X-ray | <0.01 gym/h (at a distance of 5cm From external housing) |
X-ray Generator | |
Generate direct | Bottom to up |
Generate anger | 80 degree |
Anode Voltage | 140~160Kv |
Anode power | 0.4 to 1.2mA |
Cooling / Duty Cycle | Sealed oil bath with forced air/100% Oil Cooling /100% |
Installation Data | |
Operation temperature/Humidity | 0℃-45℃/20%-95%(non-condensing) |
Storage Temperature/Humidity | -20℃-60℃/20%-95%(non-condensing) |
Operation Power | 220VAC(±10%)50±3Hz |
Power Consumption | 1.0 KW (max) |
Noise | <55db |
Image System | |
X-ray Sensor | L-Shaped Photo diode Array(Mufti-energetic), 12bit Deep |
Monitor | High Resolution Color, LCD Accord, 17 inch |
Image Processing | Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval. |
Image Grey Level | 4096 |
Image Max Resolution | 1024 * 1280 pixel |
Image Processing | 24bit for processing real time |
Image storage | Storage 60000 pictures in real time |
Zones & Zoom | 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation |
Mufti-energetic distinguish objects |
organic objects in orange, inorganic objects in blue, mixture in green |
High-energy/low energy | switch from high energy to low energy |
Assist to detect drugand-explosivepowder |
Advantages
1.With equipment to save electricity .
2.Famous brand spare parts:Perelman brand generator from the USA;
Amaterasu brand detector from Japan;Inter roll brand Roller from German;
3.Protective cover onlead curtain to avoid leadpollution;
4.Sound and light alarm;
5.Local network supported.
Application
Excellent system forairport, train station, bus station as well as security-sensitive corporateenvironments
1.Commercial buildings;
2.Factories(to find needle in clothing, shoes, bags)
3.Courthouses;
4.Embassies;
5.Government buildings
6.Military installations
7.Prisons
8.Mail Rooms
9.Hotels
10.Schools
11.Convention centers
12.Security checkpoints
Choose walk-through metal detectorto
1. Reduces the crime rate
2. Improves traffic flow
3. Reduces the number of required searches
4. Reduces workload of security personnel
5. Reduces false alarms
6. Increases Building safety with minimal cost
7. Durable material adoption
