|Product Name:||Turnstile Gate||Shell Material:||304# SS|
|Size:||1200*280*980mm (can Be Customized)||Gross Weight::||70KG|
|Head Thickness:||1.5mm (can Be Customized)||Cabinet Thickness:||1.2mm (can Be Customized)|
|Passage Width:||≤550mm (can Be Customized)||Direction:||Bi-directional|
|Passing Speed:||≥30 People/minute||Speed:||35 Person/min (can Be Adjustable)|
tripod security gates,
pedestrian turnstile gate

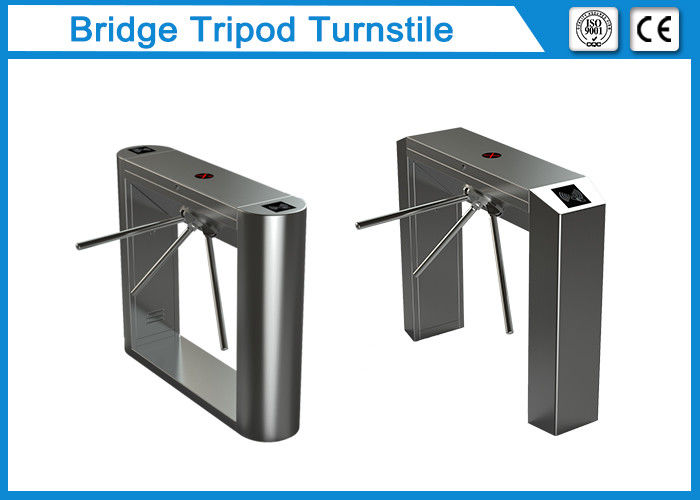

Fully Auto Bridge Tripod Security Turnstile Gate with Very Competitive Price
1. Detailed Specification:
Shell material: SUS304 stainless steel
Shell processing technology: using laser, bending, cutting, welding, polishing, polishing and other processes.
Tickness: Head: 1.5mm , Cabinet:1.2mm
Gross Weight: 70KG
Rod length/thickness: 500 (mm) / ¢ 38 stainless steel tube.
Rod working driving force: 3Kg.
Motor: 24V / 30W brushless.
Positioning accuracy: 1/500 yards.
Adaptation temperature: -40 °C ~ 80 °C. (Need to add temperature control system)
Adaptation humidity: 5% - 90%
Opening time: 0.2 seconds.
Delay reset time: ≥3S adjustable.
Passing speed: ≥30 people/minute.
Working environment: indoors and outdoors.
2. Function introduction:
1. It has fault self-test and alarm prompt function, which is convenient for users to maintain and use.
2. Can be connected to any control device output control signal or button or remote control, to achieve single bidirectional control pass.
3. Can be arbitrarily set single, two-way free passage.
4. Automatic reset function: automatically reset every 120 degrees, or when the specified time (delay adjustable) is not passed, the system will automatically cancel the permission of the pass.
5. Light indication: high-brightness traffic light status indication, guide the passage.
6. Anti-tailing function: every time one person turns 120 degrees, if someone trails, the gate automatically starts the reverse thrust blocking and alarms.
7. Fire input: It can be connected with the fire alarm signal to realize the constant electric pole normally open.
8. Memory function: Accurate signal memory, when receiving legal signals multiple times in succession, it will automatically reset after the last person passes, greatly improving the traffic speed.
9. Alarm prompt function: When the illegal passage or the brake is issued, the alarm prompt is automatically issued.
10. Anti-reverse function: When the reversal occurs during the passage, the brake lever will automatically start the reverse thrust blocking and issue an alarm. After the external force disappears, the passage will automatically resume.
11. Anti-buffering function: When illegally passing or braking, the brake lever automatically starts the reverse thrust blocking and issues an alarm to achieve humanized anti-injury. When the external force disappears, it is automatically reset.
12. Dropping rod and raising rod: the automatic falling rod when power cut off, and automatically raise rod when power on.
13. Dynamic reminder: When accepting the legal traffic signal, the brake lever automatically rotates about 5 degrees, and the soft touch rotates to the next reset point and stops.
Note: All size, shape and function can be customized as per customers’ requirements.
