|Product Name:||Speed Gate Turnstile||Dimension:||1400*160*980mm|
|Infrared Sensor:||10 Pairs||Channel Width:||≤600mm|
|Operating Temperature:||-30ºC-70ºC||Material:||304 # Stainless Steel|
pedestrian access gate,
access control turnstile gate
Full Automatic Fast Speed Flap Turnstile Gate With 10 Pairs Infrared Sensor
Overall plate structure, the box materials using standard 304 stainless steel, double waterproof treatment.Can be installed in indoor, outdoor with shed, applicable to restrict the passing rate of the place, has the count, attendance, current limiting function
Technical Parameters :
|Material||304 # stainless steel|
|Failure-free operation||5 million/time|
|Traffic speed||35 persons/min|
|Flap Opening/Closing Time||0.4S adjustable|
|Infrared sensor||9 pairs|
|Working environment||indoor and outdoor|
Feature of the product:
1.Fault self-test and alarm functions,convenient user maintenance and using
2.Via the control board Built in a small dish,Programmable devices running status
3.Anti-Pinch mechanical structure,anti-bumps function, when the swing arm reset process meet resistance, within a limited time automatically stops the motor, the default delay after the reset again (until reset), and the force is very small (≤2Kg )
4.Break into protection function, when the gate signal is not received, the arm automatically locked
5.Relative with a variety of reader device attached,working when receive relay switch signal
6.Remote control and management by the management computer
7.Power-off arm Automatic open,turn on automatically closed, can meet fire safety requirements
8.Pinch function (bridge type four pairs of infrared optional)
9.Accurate logic judgment and infrared reset function (4 or 6 pairs of infrared)
10.Counting function (optional)
Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.
ESD system: Combine with profession ESD tester for factory, special area entrance.

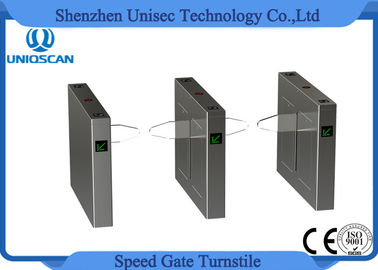

Detail Photo :
