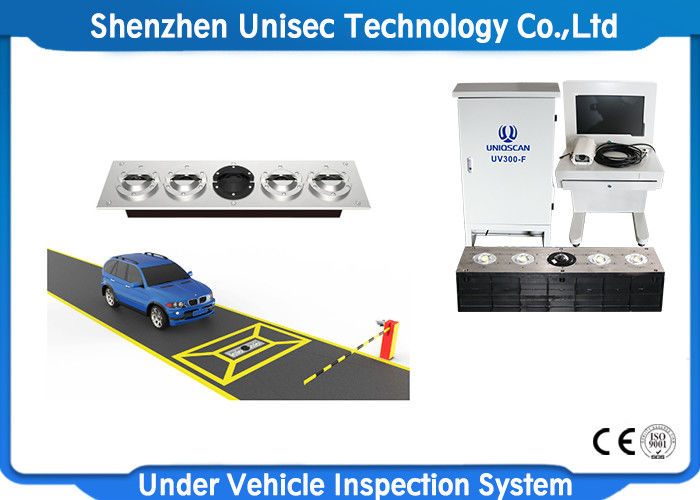

Fixable Waterproof Under Vehicle Inspection System UV300-F AC220V / 50-60Hz

Fixable Waterproof Under Vehicle Inspection System UV300-F

Under vehicle surveillance system mainly adopt to inspect the beneath part of a variety of vehicles.

It can quickly and accurately identify threats/ contraband/ smuggling of persons hiding at the bottom.

UVSS greatly improved vehicle safety inspection speed and accuracy, reduce investment in human

resources.

Computer:

1, Display: 22 inch LCD Screen

2, CPU: INTEL Quad-Core Processor

3, Motherboard : dedicated motherboard

4, Memory : DDR3 , more than 2GB

5, Hard disk : 500G high-speed hard disk

6, Working voltage : AC220V 50/60Hz

7, Data transmission cable length : 10m (standard)

Vehicle image system, control equipment and environmental adaptability:

1, Scan mode: automatic , non- external trigger scanning;

2, The maximum scan rate:18kHz；

3, Vehicle speed:≤30km/h；Loading weight: 30 Tons

4, View angle:180 degrees

5, Scanner connecting cable: 10 meters (can be customized more than 10m)

6, Lighting components : Two single sealed LED surface light source ; Life : 50,000h

7, Under Vehicle image scanner with a unique open-wide field scan design;

8, Working voltage: DC24V

9, Power Supply:AC220V/50-60Hz

10, Structure design:single sealed design；

11, Environment temperature: -20 degrees - +55 degrees

12, Appearance: Aluminum copper alloy composite material

Current(Monitor mode)              400MA

Current(Video mode)                 500MA

AC Adapter                            DC 12V  1A

Built-in Battery                        Li-battery 5000Mah

Wireless record time                    ≥10hours

Dimension:                           177mm x120mm x 20mm

Weight                              350 g
