Fast Speed Flap Barrier Turnstiles Gate Full Automatic 3 Pairs Infrared Sensor

Fast Speed Flap Barrier Turnstiles Gate Full Automatic 3 Pairs Infrared Sensor
Fast Speed Flap Barrier Turnstiles Gate Full Automatic 3 Pairs Infrared Sensor

Large Image :  Fast Speed Flap Barrier Turnstiles Gate Full Automatic 3 Pairs Infrared Sensor

Product Details:
Place of Origin: China
Brand Name: UNIQSCAN
Certification: CE , ISO
Model Number: UT560-B
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd700/set
Packaging Details: Wooden package : 1300*350*1050
Delivery Time: 3-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets/week
Detailed Product Description
Product Name: Flap Turnstile Dimension: 1200*300*980 Mm
Infrared Sensor: 3 Pairs Channel Width: ≤600mm
Operating Temperature: -30ºC-70ºC Material: 304 # Stainless Steel
High Light:

flap gate barrier


flap barrier turnstile

Full Automatic Fast Speed Stainless Steel Flap Barrier Turnstiles Gate


Product Introduction:

Overall plate structure, the box materials using standard 304 stainless steel, double waterproof treatment.Can be installed in indoor, outdoor with shed, applicable to restrict the passing rate of the place, has the count, attendance, current limiting function


Technical Parameters :

Model UT560-B
Dimension 1200*300*980 mm
Arm length 500mm(norm)
Material 304 # stainless steel
Tickness Head: 1.5mm , Cabinet:1.2mm
Input Voltage AC220±10%,50HZ
Driving motor 24V
Failure-free operation 5 million/time
Weight 35kg
Traffic speed 35 persons/min
Flap Opening/Closing Time 0.2s
Channel width ≤600mm
Infrared sensor  9 pairs
Operating temperature -30ºC-70ºC
Communication interface RS485/TCP/IP
Working environment indoor and outdoor


Feature of the product:

1. Stainless steel box, box-type bevel shape, novel and beautiful, durable.

2. Waterproof, sunscreen, anti-temperature, anti-cold.

3. Access Prompt function:Red and green light prompt the passing information.

4. The programmable gates control state, with a variety of operating modes you can choose, you can set a one-way or two-way control

5. Compatible IC, ID, magnetic card, bar code card, and other control equipment.

6. Power failure emergency function after power channel automatically open, closed automatically after power-on, to meet the special needs of the user and the fire safety requirements

7. The control panel with counting function, LED digital display function (optional)

8. The standard input and output interface, is the best choice for system integrators

9. With automatic reset function, gate, not prevailing within the stipulated time, the system will automatically cancel the access permissions of the user.(the standard is gate turns on 5 seconds will be automatically reset)

10. Pinch, anti bumps function, Blockage when in the process of the swing arm reset within a predetermined time, click stop working automatically, the default reset again after a delay, and the intensity is very small(2kg)

11. Sound, light alarm function: with trespassing, trailing alarm

12. Scour protection function ,when the gate signal is not received, the stick is automatically locked

13. Fault detection and alarm function, user-friendly maintenance and use



Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.

Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.

Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.

Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..

Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.

ESD system: Combine with profession ESD tester for factory, special area entrance.

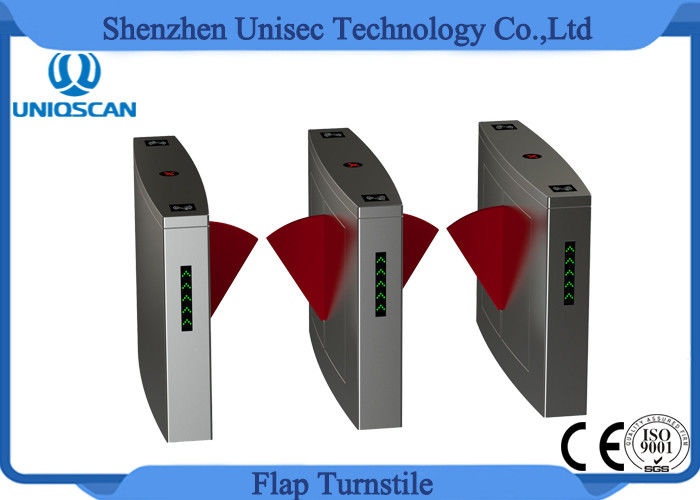

Detail Photo :

Fast Speed Flap Barrier Turnstiles Gate Full Automatic 3 Pairs Infrared Sensor 0
