Exit Tripod Entrance Barrier Gate , Turnstile Security Doors Combine Card Reader

Exit Tripod Entrance Barrier Gate , Turnstile Security Doors Combine Card Reader
Exit Tripod Entrance Barrier Gate , Turnstile Security Doors Combine Card Reader

Large Image :  Exit Tripod Entrance Barrier Gate , Turnstile Security Doors Combine Card Reader

Product Details:
Place of Origin: Guangdong, China
Brand Name: UNIQSCAN
Certification: CE,ISO Certificate
Model Number: UT550-A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: Plywood Box with dimension 49*47*105cm
Delivery Time: 5 working days after got the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/month
Detailed Product Description
Dimension: 420*330*980mm(can Be Customized) Material: 304 # Stainless Steel
Head Thickness: 1.5mm Cabinet Thickness: 1.2mm
Channel Width: ≤550mm Direction: Bi-directional

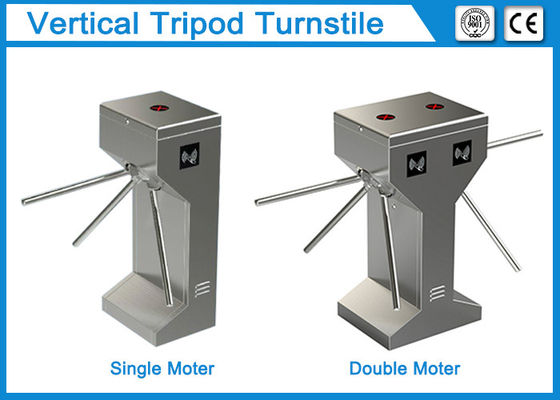

Speed: 35 Person/min Moter: Single Or Double Moter For Your Choice
High Light:

tripod security gates

,

pedestrian turnstile gate

Entrance and Exit Tripod Turnstile Gate, Can Combine Card Reader etc.



1. Technical Data:

  Item Entrance and Exit Tripod Turnstile Gate, Can Combine Card Reader etc.
1 Power Voltage AC220V/110V±10% 50HZ/60HZ
2 Operation Temperature -25°C to +75°C
3 Relative Humidity <90%, no condensation
4 Access Width ≤550mm
5 Passing Speed ≤35 Persons/min.
6 Motor 0.5NM/24V (Fully Automatic)
7 Input Connection +12V Level Signal or Pulse Wide>10ms DC12V
8 Communication Connection RS485 Communication Module Standard
9 Material Stainless Steel 304; Thickness is no less than 1.5mm
11 Colour SSB (US32D) - Stainless Steel Brushed/Power Coating (Optional)
12 Operation Place

Subway Station, Hoverport, Tourism, Sports, Exhibition, Swimming Hall,

Residence Area, Enterprise Entrance and Exit, Attendance, Gateway Guard,

Charge Management, Special Access Control, ect.



Exit Tripod Entrance Barrier Gate , Turnstile Security Doors Combine Card Reader 0

2. Data sheet:



Items Models UT550A
Semi/Full-automatic Full-Automatic/Semi-Automatic
Housing Material #304 Stainless Steel
Housing Plate Thickness 1.2mm(Cover,1.5mm)
Dimensions of Housing
(L×W×H mm)
420×33980
More housing dimensions Available
Arm Length (out of housing) 490mm
Gross Weight 50kg
Max Arm Bearing 80kg
Arm Driving Force 3kg
Rotating Direction Bi-Directional
Power Supply 220V±10%, 110V±10%
Frequency 50/60HZ
Motor Working Power DC24V
Rated Power 30W
Driving Motor Type Brushless DC Motor
Communication Interface RS485 Communication Module Standard
Input Interface +12V Level Signal or Pulse Wide>10ms DC12V
Traffic Speed 40 persons/min
Working Temperature -25°C~75°C
Working Environment Indoor / Outdoor (Shed)
Relative Humidity

≤90%, no condensation
