Product Details:
Payment & Shipping Terms:
|
| Product Name: | X Ray Luggage Scanner | Screening: | 19inch |
|---|---|---|---|
| Display Resolution: | 1280*1024 | Film Safety: | For ISO 1600 |
| System Power: | 150-200KV | Color Quality: | 24 Bit Real Colors |
| Tube Current: | 1~1.5MA | Angle: | 80° |
| Highlight: | airport luggage scanner,airport x ray machine |
||
Electronic Multi-energy Airport Baggage Scanner, Screening equipment Dental Surveillance Detection System Equipment
X-Ray Generator Specifications
High penetrate strength display: increase brightness of dark area in image to display object which is behind high absorbility mass distinctly
Low penetrate strength display: increase contrast of low absorbtivity mass (easy to penetrate) to display it distinctly
Soldered ball measuring technique
Cooling/work cycle: Sealed oil cooling/100%
Wire Resolution: 0.1mm metal line
Steel Penetration: 32MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation: <0.2µGY/H
| Specifications: | |

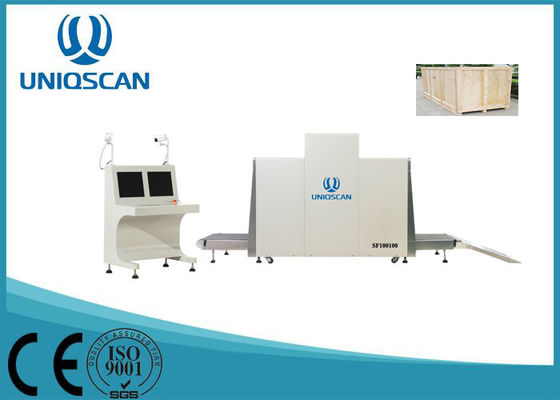

| Model Number | SF100100 |
| Passageway Size | 1000(W)*1000(H) mm |
| Penetration | mm Steel plate |
| Belt Max Load: | 200Kg |
| Dose per inspection: | <2Gy/h |
| Resolving power | 38AWG |
| Film Safety | Guarantee ISO1600 Film |
| X-Ray leakage | <0.2µGy/h |
| Ray beam spread angle | 80 degree |
| Tube Voltage | 150-200KV |
| Tube power | 1-1.5mA |
| Cooling/work Cycle | Sealed Oil Cooling /100% |
| Multi-energy/Distinguish objects | organic objects in orange,inorganic objects in blue,mixture in green |
| Belt speed | 0.22m/s (adjustable) |
| Display | HD 19’’LCD display |
| High-energy/low energe | Two kinds of energyswitch display |
| Image restoration | Image display restore the origional status |
Product advantage
a Alarm by sounds & light::Alarm by sounds and light when conform to condition.
b Network interface:Could be connect local area network and support multi-terminal check baggage at same times
c Safety ray:Transmit ray under automatic control, avoids the miss
d. Positive and negative image show with adjusted edge.
e. Dynamic memory, print, DVD reader etc output mode
f. soldered ball measuring technique
g. bubble area measuring, Bubble proportion calculation, can do coordinate setting and statistics for angle, radius, solder joint area, and welding point
Function Description
a 2* 19’’ High Resolution LCD Monitor
b Display Resolution: 1280*1024;24 bit/pixel Color, dual view image
objects in blue color, mixture in green color
c Be with Industrial computer system, and Windows operation.
d Flexible combination: CT scanning, Intensifier, panel can be chose.
e Work power 40-160KV, in order to satisfy the different requirement.
f big size screen display, 24 inch medical screen display, provides focus image, exact-observation and easy to tell images, also can be full image
g Threat image projection (TIP), assist to detect drug and explosive powder
h Grey level optimization, live pseudo-color, humanization design
i Ele-shooting, multiframe superposition, easy and fast.
j. Positive and negative image show with adjusted edge.
k. Dynamic memory, print, DVD reader etc output mode
l. soldered ballmeasuring technique
Note:
1)TIP function: to check if the operation work carefully and find out the Dangerous article as setting. The function can be open or close as requirement.
2) The scanning pictures can be zoom in, zoomout and moved around as you like. What’s more the pictures are in JPG format, can copy to any where to check.
3)Automatic start-stop motor control, when there is baggage on conveyor, it will run, while none, it will stop.
