|Screen::||7 Inch LCD Screen||Security Applications::||30 Preset Programs|
|Zones::||33 Zones||Gross Weight:::||75KG|
|Power Supply:::||AC85V-264V / 47.5-60Hz||Sensitivity::||300 Sensitivity Level Each Zone|
|Working Temperature::||-20℃--+50℃||Warranty::||2 Years|
walk through security scanners,
walk through x ray machine

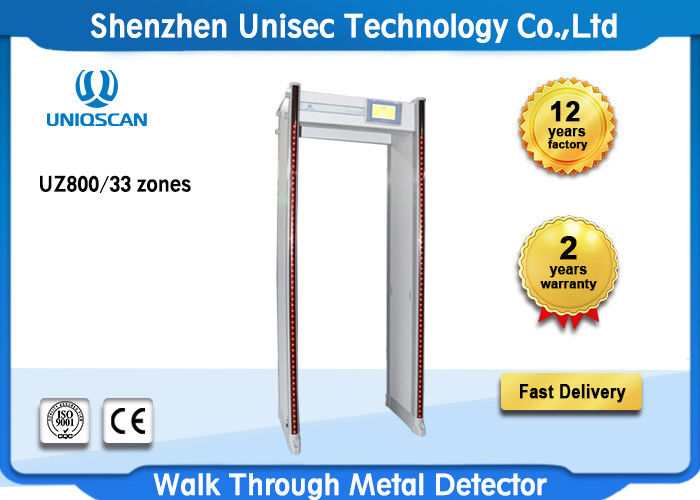

Economic Waterproof Walk Through Scanner , Walk In Metal Detector Door Frame
Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
Power Supply:AC85V-264V / 47.5-60Hz
Waterproof can be used outside
Passage size: 2050mm(H)X760mm(W)X600mm(D)
Gross weight: 65KG
Characteristic & Function
33 detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable: Each zone has 300 sensitivity level
7 inch color LCD screen
Infrared remote control
Using high density fireproof material
Automatically count passengers and alarm times
IN / OUT counter: bi-directional counter
High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
30 preset programs for security applications
Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
100 frequencies for option. To work with neighbouring gates at 40cm
Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
Detecting speed: up to 100 passenger/ min.
Power save: Automatically power OFF if no passengers in 5 mins. Once pass through the gate, it will automatic working.
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design,easy for maintenance and replacement.
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
Can be customized 45 zones
4 hours backup battery (Option)
Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc.
