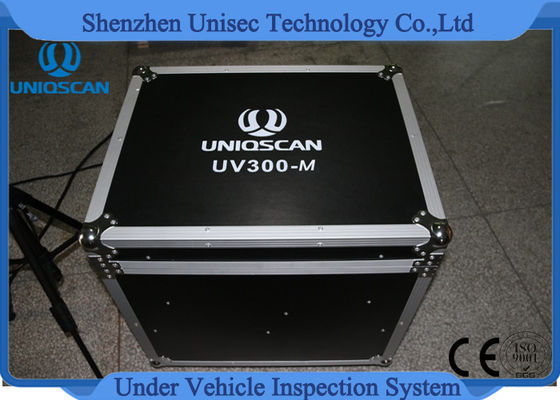

Dynamic Imaging Mobile Type Under Vehicle Inspection System Anti - Terrorism

Dynamic Imaging Mobile Type Under Vehicle Inspection System Anti - Terrorism
Dynamic Imaging Mobile Type Under Vehicle Inspection System Anti - Terrorism

Large Image :  Dynamic Imaging Mobile Type Under Vehicle Inspection System Anti - Terrorism

Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE; ISO9001
Model Number: UV300M
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: EXW 6000usd/unit to 9000usd/unit
Packaging Details: color box
Delivery Time: 5-8 work days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Detailed Product Description
Product Name: Under Vehicle Inspection Scanner Display: 22 Inch Color LCD Screen
Motherboard: Dedicated Motherboard Hard Disk: 500G High-speed Hard Disk
Data Length: 10m Store Or Load Time: <1 Second
Scene Image Display: ≥1 Channel Weight Capacity: <20T
High Light:

under vehicle surveillance system

,

under vehicle bomb detector

Under Vehicle Inspection System, Anti - Terrorism UVSS Surveillance System mobile type Dynamic imaging



  • System interface language: English (can be customized);
  • Display resolution: adapt to a variety of display resolution;
  • Vehicle image data transfer interface: NetworkRJ45
  • Scene image display: ≥1 channel
  • Scanning Image resolution: ≥ 2048
  • Store or load time: <1 second;
  • Vehicle image display mode: large format transverse;



Computer:

  • Memory DDR3, more than 2GB
  • Hard disk 500G high-speed hard disk
  • Working voltage AC220V 50/60Hz
  • Data transmission cable length 10m (standard)
  • Display 22 inch color LCD Screen
  • CPU INTEL core Quad-Core Processor
  • Motherboard dedicated motherboard



System host:

  • Hard Disk:SATA2 Hard Disk 500G
  • Dual LAN (At least one Intel Gigabit)
  • USB2.0 (Up to 4 pieces)
  • Monitor: 22inch LCD, resolution up to 1920*1080
  • Scene Video Record: 4 channel, Compression algorithm of scene video: H264
  • 2.4GHz or higher
  • Memory:2G( optional 4G)
  • Graphics:Inter(R) Gen 5.0 Integrated Graphics Engine



Technical parameters:

  • · Effective Field of View(FOV):less than 180°
  • · Auxiliary light: 100W
  • · Weight capacity: <20T
  • · Water-proof grade: Ip68
  • · Scanning device weight: 24KG
  • · Scanning device volume: 450mm×400mm×88mm
  • · Communication interface: RS232/RS422
  • · Operating Temperature: -10℃ to 55℃
  • · Storage temperature: -40℃ to +75℃
  • · Operating voltage: 110-240V AC, 50-60HZ
  • ·Vertical resolution of the image: 5000*2048 pixels
  • · Check the width viewing angle: < 4 meters
  • · Speed of vehicle:< 30km/h with ALPR(Automatic Licence Plate Recognition)
  • · Speed of vehicle:70km/h without ALPR(Automatic Licence Plate Recognition)
