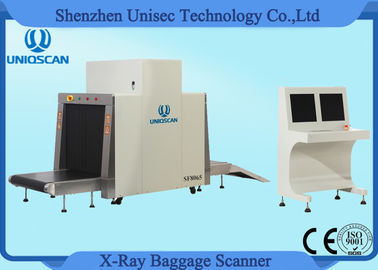

Dual Energy Security X Ray Baggage Scanner Machine With 19'' LCD Screen Operate Desk

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

Dual Energy Security X Ray Baggage Scanner Machine With 19'' LCD Screen Operate Desk

Dual Energy Security X Ray Baggage Scanner Machine With 19'' LCD Screen Operate Desk
Dual Energy Security X Ray Baggage Scanner Machine With 19'' LCD Screen Operate Desk

Large Image :  Dual Energy Security X Ray Baggage Scanner Machine With 19'' LCD Screen Operate Desk

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF8065
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: in one week
Payment Terms: T/T, , L/C, Western Union
Supply Ability: 50sets/week
Detailed Product Description
Product Name: Airport Security Systems Tunnel Size: 800 (W) ×650 (H) Mm
Conveyor Max Load: 200 Kg Conveyor Speed: 0.22m/s
Wire Resolution: 40AWG Noise Level: <55dB
Tube Current: 0.4~0.7mA Anode Voltage: 140~160KV
High Light:

x ray scanning machine

,

baggage x ray machine

Dual Energy Security X Ray Baggage Scanner Machine With 19'' LCD Screen Operate Desk



General Specifications:

Tunnel Size : 800 (W) ×650 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <55dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 38mm
Single inspection dosage: < 1.15μGy
Leakage radiation: <0.14µGy/h
Film Safety: Guarantee ISO1600 Film



X-Ray Generator Specifications:

Tube Current: 0.4~0.7mA
Anode Voltage: 100~160KV
Detector: L-shaped Array
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Angle: 80°



Computer Specification:

Processor: I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T



Image Display:

  • 19'' High Resolution LCD Monitor
  • Display Resolution: 1280*1024;24 bit/pixel Color
  • Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
  • Image storage: 100,000 pictures in real time (can be customized)
  • Zoom: 64 Times Enlarge, Whole screen continuous observation
  • Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
  • Edge enhancement: Object contour edge is more distinct
  • Super image enhancement: Image detail is more distinct
  • High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  • Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  • Brightening/dimming: Increase/Decrease brightness of image
  • Image recurrence: Display the previous twenty images and process any one of them
  • Image restoration: Restore image to initial status
  • Assist to detect drug and explosive powder



Parts:

  • x-ray generator is from Beijing KV tech
  • Interroll from Germany
  • Receiver from DEETEE Finaland



Environment Specifications:

  • Operating temperature/humidity: 0ºC ~ 45ºC/20% ~ 95% (Non-condensing)
  • Storage temperature/humidity: -20ºC ~ 60ºC/20% ~ 95% (Non-condensing)



Application:

End user Recommend X Ray Baggage Scanner model NO.
Airports, Transport terminals SF6040; SF6550; SF10080; SF100100
Factories (to find needle in clothing, shoes, bags), SF5030; SF5636; SF6040; SF6550
Courthouses, Embassies, Buildings SF5030; SF5636; SF6040; SF6550
Military installations SF5030; SF6040; SF6550; SF8065; SF100100
Prisons, Hotels, Schools, Convention centers SF5030; SF5636; SF6040; SF6550; SF10080
Security checkpoints,Special events location SF5030; SF6040; SF6550; SF8065; SF10080
