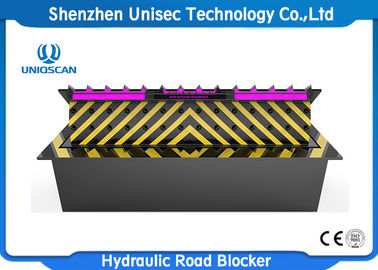

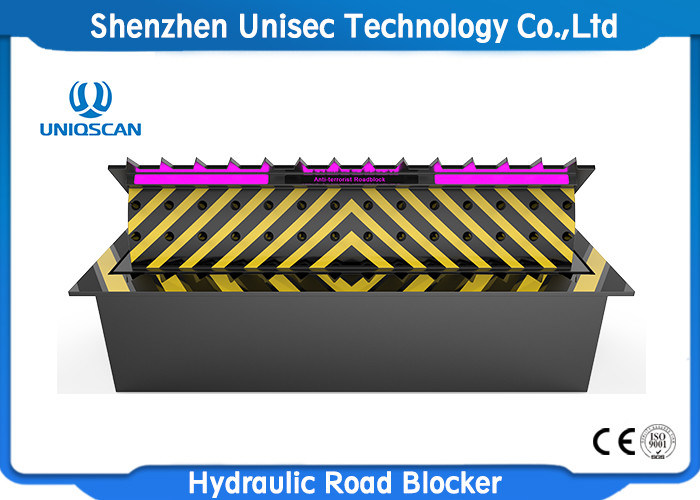

Double Sealed Hydraulic Road Blocker LCD Display Electro Rising Road Blocker

Large Image : Double Sealed Hydraulic Road Blocker LCD Display Electro Rising Road Blocker

Product Details:

Place of Origin:	China
Brand Name:	Uniqscan
Certification:	ISO CE
Model Number:	U360

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 100 -1000 Unit
Packaging Details:	wood case
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500 Unit/ week

Contact Now

Detailed Product Description

Control System:	Electro- Hydraulic	Passing Pressure:	≤120 Tons Container Trucks
Rise Time:	≤1-3S（adjustable）	Fall Time:	≤1-3S （adjustable）
Buffer Function:	Buffer Time :0.2s-0.5s	Running Noise:	≤60 Db
Waterproof:	IP68, Double Sealed	LED Light Color:	Red,blue,green,yellow,purple,white…(customized)
High Light:	hydraulic road barrier , hydraulic security barriers

Waterproof double sealed Electro Hydralic Road Blocker

Technical Parameter

Control System	Electro- Hydraulic
Passing pressure:	≤120 tons container trucks
System Dynamic power	3.75KW
Rise time :	≤1-3S(adjustable)
fall time :	≤1-3S (adjustable)
Buffer function	buffer time :0.2s-0.5s
Running noise	≤60 db
Voltage:	Three-phases 380V,(control voltage 24V)
Oil container:	60liter
Control solenoid valve	24V
Lifting solenoid valve	24V
Remote control distance	Approx .50-100m
Working Temperature :	-35℃~75℃(suitable)
Material:	A3 steel ,Spray anti-rust paint
Material thickness	16mm,20 mm,25 mm (Optional)
Waterproof:	IP68, double sealed
LED light color	red,blue,green,yellow,purple,white…(customized)
Color:	red,blue,green,yellow…(can be customized)
Weight:	1.5T

Main Function

Can be manually raised and fall down if power cut.
Gang-control interface
Reliable structure, heavy duty load, smooth action, low noise.
In rising and falling, reversible operation is available .
Hydraulic drive comes with hydraulic lock
Welding cylinder
PLC programming command control system
LCD display ,Both Chinese and English menu.
PLC built-in encryption system
Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200 Heavy duty Industrial Level
Double dynamic double oil pump 2.3ML/time
Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose
