DC24v Automation Under Vehicle Inspection System Uvss Integrated With Anpr

DC24v Automation Under Vehicle Inspection System Uvss Integrated With Anpr
DC24v Automation Under Vehicle Inspection System Uvss Integrated With Anpr

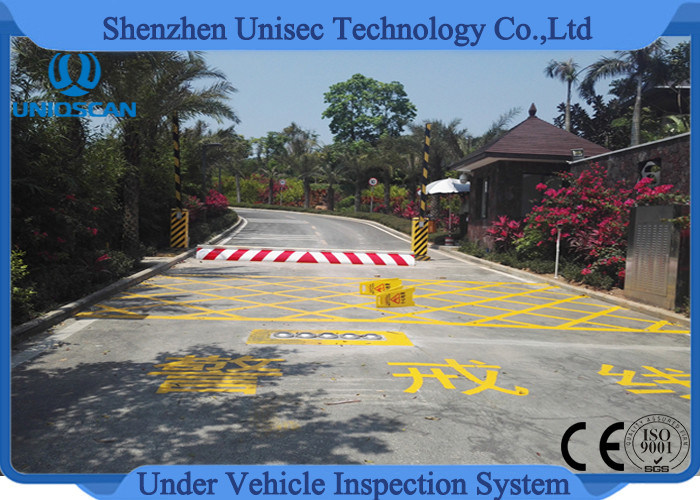

Large Image :  DC24v Automation Under Vehicle Inspection System Uvss Integrated With Anpr

Product Details:
Place of Origin: China
Brand Name: uniqscan
Certification: CE,ISO
Model Number: UV300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 3-7 work days after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100sets per month
Detailed Product Description
Product Name: Under Vehicle Bomb Detector Camera: Sensor:: Line Scans CCD
Resolution:: 5000*2048 Pixels Power Supply:: 24VDC, 3A
Working Voltage:: DC24V Power Supply:: AC110V-240V/50-60Hz
Operating Temperature:: -10℃ To 55℃ Storage Temperature:: -40℃ To +75℃
High Light:

under vehicle bomb detector

,

under car bomb detector





DC24v Automation Under Vehicle Inspection System Uvss Integrated With Anpr



Features:



l Auto digital line scan, high-resolution undercarriage imaging.



l High automation, easy to be used.



l Applicable to variety of vehicles, wide vision.



l Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.



l Undercarriage image can be stored, retrieved, searched or compared with other images.



l A variety of image processing methods: enlarge, stretching and cutting.



l Multi entrance management model, management, and statistics of entering and exiting vehicles.



l Flexible detection process can be made on site to satisfy the needs of various work conditions.



l Option of automatic number plate recognition system available, associative storage of various vehicle information and undercarriage images.



l Image monitoring, video recording for different scenario.



Embedded Screening Part

Camera: Sensor: line scans CCD
Resolution: 5000*2048 pixels
Power Supply: 24VDC, 3A
Illumination: LED
Power Supply: 24VDC,150W
Size: 1200mm x 350mm
Operating Temperature Range: -20 degree to +70 degree



System Host

Brand: Grantech (SYM76941VGGA)
CPU: Intel(R)Celeron(R)CPU
  E3400 2.6GHz 2.59 GHz
Memory: 2G( optional 4G)
Graphics: 512M
Hard Disk: SATA2 Hard Disk 500G
Dual LAN At least one Intel Gigabit
USB2.0 Up to 2 pieces
Monitor: 22 inch LCD,resolution up to 1920*1080
Scene Video Record: 4 channel, Compression
  algorithm of scene video: H264



Controller

Input:

2 channels induction coil
Output: 1 Channel switch type 12VDC
Communication port: RS485, Ethernet(Optional)
Operating Temperature: -10℃ to 55℃



Features

1 Multi entrance management model, management, and statistics of entering and exiting vehicles
2 High automation, easy to be used
3 Auto digital line scan, high-resolution undercarriage imaging.
4 Applicable to variety of vehicles, wide vision.
5 Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
6 Undercarriage image can be stored, retrieved, searched or compared with other images.
7 Avariety of image processing methods: enlarge, stretching and cutting.
8 (Optional)ALPR-Automatic License Plate Recognition and RFID technology associative storage of various vehicle information and undercarriage images.

DC24v Automation Under Vehicle Inspection System Uvss Integrated With Anpr 0
