Home ProductsUnder Vehicle Inspection System

Customized Language Under Vehicle Inspection System Large Format Transverse

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

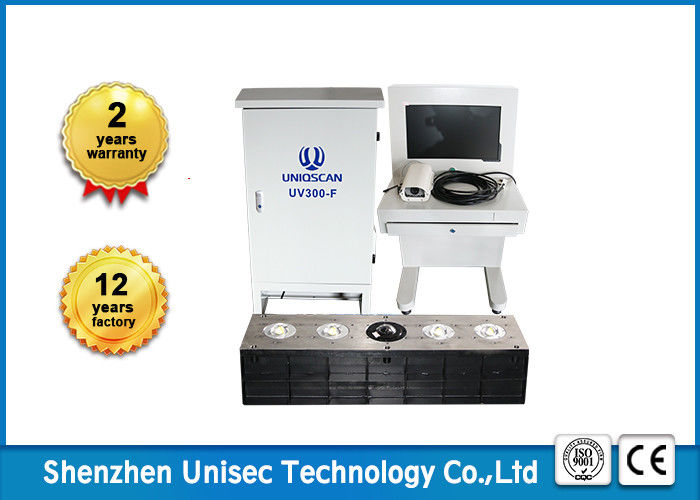

Customized Language Under Vehicle Inspection System Large Format Transverse

Customized Language Under Vehicle Inspection System Large Format Transverse
Customized Language Under Vehicle Inspection System Large Format Transverse

Large Image :  Customized Language Under Vehicle Inspection System Large Format Transverse

Product Details:
Place of Origin: China
Brand Name: UNIQSCAN
Certification: CE,ISO
Model Number: UV300-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Wooden box
Delivery Time: in 7 working days
Payment Terms: MoneyGram, Western Union, T/T, D/P, D/A, L/C
Supply Ability: 300units/month
Detailed Product Description
Store Or Load Time:: <1 Second Display Resolution:: 1920 * 1080P
Scene Image Display:: ≥1 Channel Weight:: 180kg
Scanner Size:: 1200*350*210mm Vehicle Image Local Magnification:: > 2 Times
Vehicle Image Scaling:: 16 Times Vehicle Image Display Mode:: Large Format Transverse
Vehicle Image Storage Format:: BMP Or JPEG System Interface Language:: English (can Be Customized)
High Light:

under vehicle surveillance system

,

under vehicle bomb detector

Fixable Under Vehicle Surveillance / Inspection System with customized language operation system







1, Specification

Parameters:

► Store or load time: <1 second;

► Vehicle Image local magnification: > 2 times;

► Vehicle Image scaling: 16 times;

► Vehicle image display mode: large format transverse;

► Vehicle image storage format: BMP or JPEG;

► System interface language: English (can be customized);

► Display resolution: 1920 * 1080P

► Communication interface: RS232/RS422;

► Scene image display: ≥1 channel

►  Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image

 Scan mode: linear scanning, the ground sensor coil trigger;

 Vehicle speed: 1-60km/h, suggest speed : less than 30km/h

 View angle: 175 degrees

 Image Longitudinal resolution: 2048 pixels CCD;

 Scanner connecting cable: 100 meters (can be customized)

 Lighting components : Four single sealed LED surface light source ;

Life : 100,000h

 Under Vehicle image scanner with a unique open-wide field scan design;

 Working voltage: DC24V

 Power Supply:AC110V-240V/50-60Hz

 Structure design:single sealed design;

 Loading weight: 30 Tons

 Scanner size: 1200*350*210mm

 Weight: 180kg

 Environment temperature: -40 degrees - +70 degrees

 License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )



 Customized Language Under Vehicle Inspection System Large Format Transverse 0



Computer:

Display:22 inch color LCD Screen

CPU:INTEL core Quad-Core Processor

Motherboard : dedicated motherboard

Memory : DDR3 , more than 4GB

Hard disk : 500G high-speed hard disk

Graphics card : DDR3, 192BIT independent graphics

Appearance: stainless steel composite material

Working current: 3A

Working temperature : -20 ℃ ~ 55





Customized Language Under Vehicle Inspection System Large Format Transverse 1
