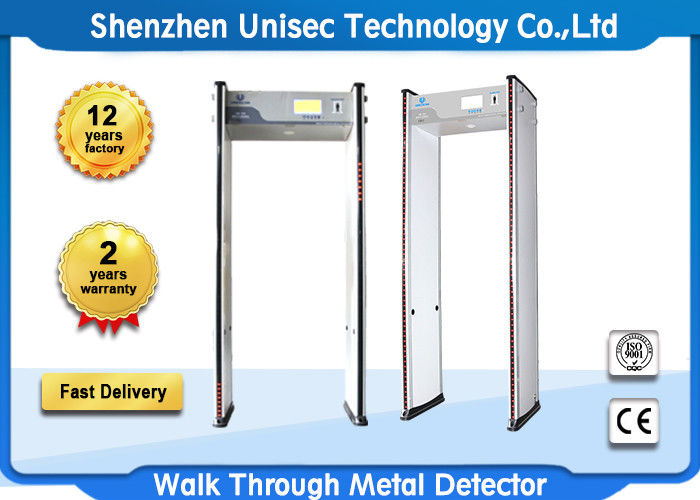

Archway Walkthrough Dfmd Metal Detector Security Check Sensitivity Adjustable

Large Image : Archway Walkthrough Dfmd Metal Detector Security Check Sensitivity Adjustable

Product Details:

Place of Origin:	Shenzhen
Brand Name:	Uniqscan
Certification:	CE;ISO
Model Number:	UB700

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiation
Packaging Details:	carton box
Delivery Time:	in one week
Payment Terms:	L/C, T/T, Western Union

Contact Now

Detailed Product Description

Material:	Fire-proof	Certification:	CE;ISO
Application:	Public Security	Warranty:	2 Years
Network:	Option	Back Up Date:	Option
Gross Weight:	63KG	Power Supply:	AC85V-264V
Highlight:	pass through metal detector , security walk through gate

Archway Walkthrough Dfmd Metal Detector Security Check Sensitivity Adjustable

MODEL:UB700

18 zones standard

Parameters

Power Supply:AC85V-264V

Working temperature:-20℃--+50℃

Working Frequency :4KHZ—8KHZ

Standard External size: 2200mm(H)X800mm(W)X580mm(D)

Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)

Package size for door panels: 2290*560*180mm *1ctn

Package size for control unit: 760*380*260 mm*1ctn

Gross weight: 63KG

Characteristic & Function

18 mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
Sensitivity adjustable: Each zone has 256 sensitivity level, 0-255 adjustable
5.7 inch LCD screen
Infrared remote control
Sound & LED alarm: Both Side LED indicator ,

easily show where the metal is.

Automatically count passengers and alarm times
Alarm strength indicator on control panel
Password protection, only the authorized person can operate.
Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Using high density fireproof material
Program Self-diagnostic when power on,no need initial or periodic calibration
Modularization design,easy for maintenance and replacement.
Sensitivity Test piece: One yuan Coin, omnidirectional detection
4-8 hours backup battery (Option)
