Anti-terrorist 304 stainless steel Hydralic Rising Bollard with LED lighted

Name: Anti-terrorist 304 stainless steel Hydralic Rising Bollard with LED lighted
Brand: UNIQSCAN
SKU: UR-600
Rating: 4.9 (122 reviews)

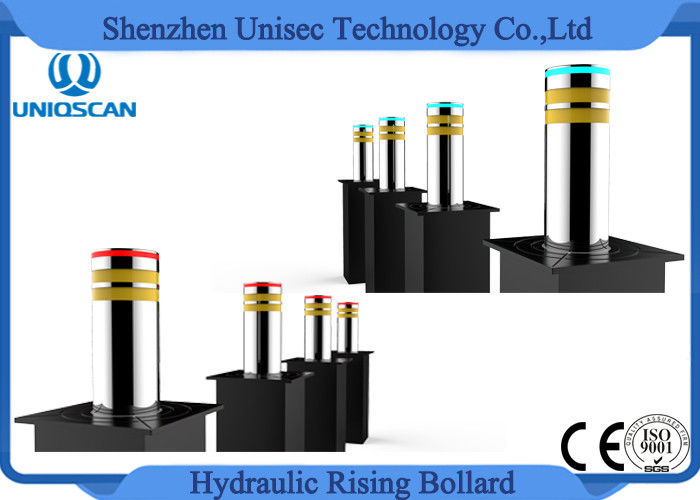

Large Image : Anti-terrorist 304 stainless steel Hydralic Rising Bollard with LED lighted

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIQSCAN
Certification:	CE , ISO
Model Number:	UR-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Wooden Case
Delivery Time:	a week
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50units/week

Contact Now

Detailed Product Description

Product Name::	Hydralic Rising Bollard	Passing Pressure：:	≤80- 120 Tons Container Trucks
Voltage：:	AC220V 50Hz Integrated	Rise Time ：:	≤3-4S （adjustable）
System Dynamic Power::	350W Integrated	Fall Time ：:	≤3-4S （adjustable）
Rising Height：:	600mm	Weight::	200 KG Approx
High Light:	rising security bollards , traffic control bollards

Anti-terrorist 304 stainless steel Hydralic Rising Bollard with LED lighted

Product Application:

The automatic Bollard is an electric-hydraulic-mechanically operated retractable bollard system.
The system can be quickly and easily operated. It is suitable for both security and access control applications.
The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.

Technical Parameter:

Control System	Integrated Electro- Hydraulic
Passing pressure:	≤80- 120 tons container trucks
Voltage:	AC220V 50Hz Integrated
System Dynamic power	350W Integrated
Rise time :	≤3-4S (adjustable)
fall time :	≤3-4S (adjustable)
Material:	304 stainless steel
Rising height:	600mm
Diameter	168mm,219mm,273mm (can be customized)
External housing size	4304301130mm/500500900mm
Thickness of bollard	6mm,8mm,10mm.12mm,15mm,30mm (optional)
Working Temperature :	-35℃~75℃(suitable)
Storage Environment :	10℃~65℃, Waterproof and moisture-proof
Solenoid valve voltage :	24V
Remote control distance	Approx .50m-100m
Running noise	≤60 db
Waterproof:	IP68, double sealed
Weight:	200 KG approx.

Main Function:

Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
Integrated electrical mechanism : stroke 600mm,Cylinder outer diameter 60mm,Rod diameter:16mm.
6k Mirror cylinder
Colorful With LED (Acrylic light circle)
Reflective sticker :2 strips
Gang-control interface
Can be manually fall down if power cut.
Available to reverse operation during rising or falling down
Hydraulic drive comes with hydraulic lock
PLC programming command control system
LCD display ,Both Chinese and English menu.
PLC built-in encryption system
