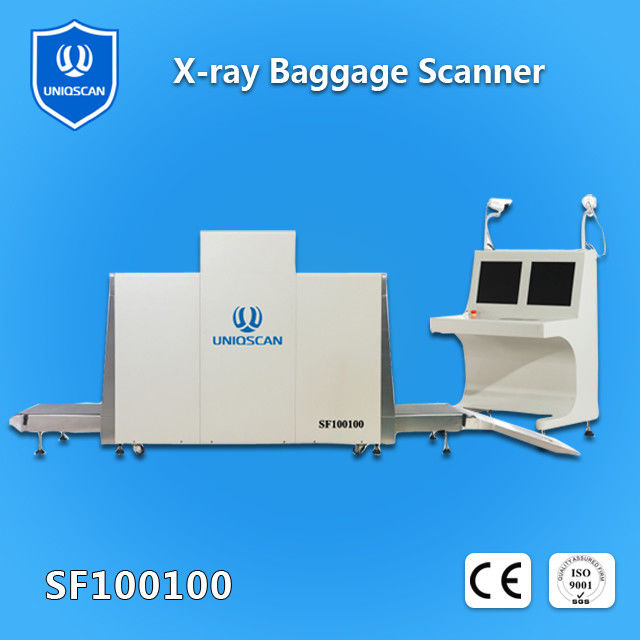

Airport X Ray Baggage Scanner with high sefinition scanned images

Company introduce

We are 10 years professional security check equipment manufacturer.

Specialized in the development and research of the x-ray imagine technology, metal detection technology, explosive detection, liquid detection and relative security services

Specification

Tunnel Size : 1000 (W) ×1000 (H) mm

Power Requirement: 220V AC (±10%) 50±3Hz

Power consumption: 1.0KW (Max)

Noise level: <58dB

Conveyor Speed: 0.22m/s

Conveyor Max Load: 250 kg

Wire Resolution: 38AWG

Spatial Resolution: 1.0mm Horizontal and Vertical

Steel Penetration: 38mm

Single inspection dosage:

< 1.6μGy

Leakage radiation: <0.2µGy/h

Film Safety: Guarantee ISO1600 Film

X-Ray Generator

Voltage: 100-160KV (Adjustable)

Tube Current: 0.4 ~1.2mA (Adjustable)

Cooling: Sealed oil bath with forced air

Duty Cycle: Rated for 100%Duty Cycle

Beam Direction: Downward

Beam Angle: 80°

Detector: L-shaped Array

Environment Specifications:

Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)

Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

Image Performance System:

2* 19’’ High Resolution LCD Monitor

Display Resolution: 1280*1024;24 bit/pixel Color

Contrast Sensitivity: 24 Visible Levels,4096 Gray Level

Image storage: 100,000 pictures in real time (can be customized)

Zoom: 64 Times Enlarge, Whole screen continuous observation

Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Assist to detect drug and explosive powder

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

production process

Scanned images

Certificate

Packing info

External Dimension L*W*H (mm)
3870*1315*1910 1250*985*600
Package Dim. with wooden case L*W*H (mm)
2800*1450*2080 1440*1250*710
