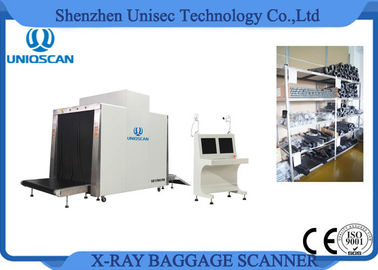

Airport Metro Big Size X Ray Baggage Scanner High Resolution SF150150

High Resolution Airport Metro USe Big Size X-Ray Baggage Scanner SF150150

Tunnel Size : 1500(W)×1500(H)mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 500 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 34mm
Single inspection dosage: < 1.6μGy Leakage radiation: <0.2µGy/h
Film Safety: Guarantee ISO1600 Film

X-Ray Generator Specifications
Voltage: 80-160kV (Adjustable)
Tube Current: 0.4 ~1.0mA (Adjustable)
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100％Duty Cycle
Beam Direction: Downward
Beam Angle: 80°
Detector: L-shaped Array

Image Display
2* 19’’ High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels,4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence : Display the previous twenty images and process any one of them
Image restoration : Restore image to initial status
Assist to detect drug and explosive powder
Special features:
Japan HAMMATSU detecting sensor, Germany INTERRoll electronic Roller
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Environment Specifications:
Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)
