|Brand Name::||UNIQSCAN||Place Of Origin::||Guangdong, China (Mainland)|
|Screen::||7 Inch LCD Screen||Backup Battery::||4-8 Hours (Option)|
|Zones::||33/45 Zones||Power Supply::||AC85V-264V|
|Certification::||CE. ISO||Sensitivity::||999 Sensitivity Level|
|Working Temperature::||-20℃--+50℃||Warranty::||2 Years|
walk through security scanners,
walk through x ray machine

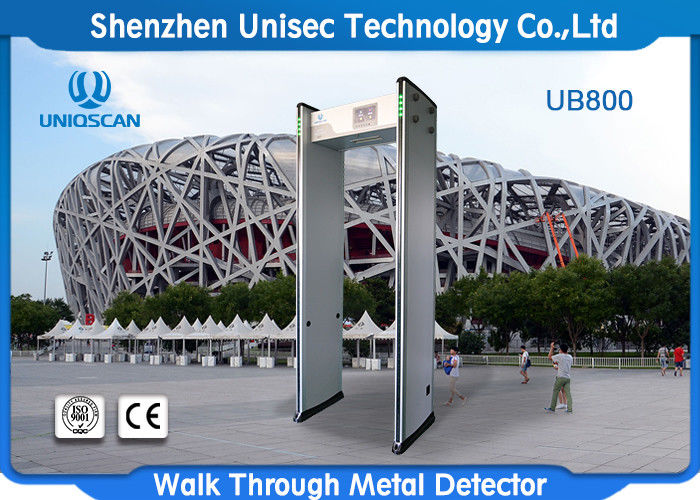

UB800 33 zones walk through metal detector/door frame metal detector security equipment used in railway station
Power Supply:AC85V-264V / 50-60Hz
Working Frequency :4KHZ—8KHZ
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2000mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2290*560*190mm *1ctn
Package size for control unit: 760*380*260 mm*1ctn
Gross weight: 70KG
CHARACTERISTIC & FUNCTION
Ø 33 detecting zones, Simultaneous alarm from multi- zones;
Ø Sensitivity adjustable: Each zone has 999 sensitivity level
Ø 0-999 adjustable
Ø 7 inch color LCD screen
Ø Infrared remote control
Ø Using high density fireproof material
Ø Automatically count passengers and alarm times
Ø PASS and ALARM count: up to 99999
Ø High sensitivity: Ferrous/ non-ferrous /Alloy can be detected
Ø 15 preset programs for security applications
Ø Alarm volume range from level 0 to 9
Ø Alarm tones: Change from 1 to 9
Ø Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.
Ø 100 frequencies for option. To work with neighbouring gates at 50cm
Ø Sound & LED alarm: Two Sides LED indicator easily show where the metal is.
Ø Detecting speed: up to 100 passenger/ min.
Ø Password protection, only the authorized person can operate.
Ø Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction. Modularization design, easy Ø for maintenance and replacement.
Ø Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
Ø Sensitivity Test piece: One Yuan Coin, Omnidirectional detection
Ø Network support
Ø Can be customized 36 zones
Ø 4 hours backup battery (Option)
Exhibition center, Electronic Factory, Bank, Prison, Government office, Hotel etc.
