Product Details:
Payment & Shipping Terms:
|
| Materai: | Woodlen | Color: | White/ Dark Grey; Light Grey |
|---|---|---|---|
| Display: | 8 Status Led Display | Size: | 2290*560*190 |
| Zone: | 6 Zones | Voltage: | 80-260 |
| Payment: | T/T; Western Union | Indicate Light: | Green |
| Highlight: | walk through security scanners,walk through safety gate |
||

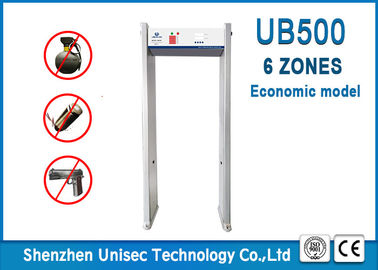

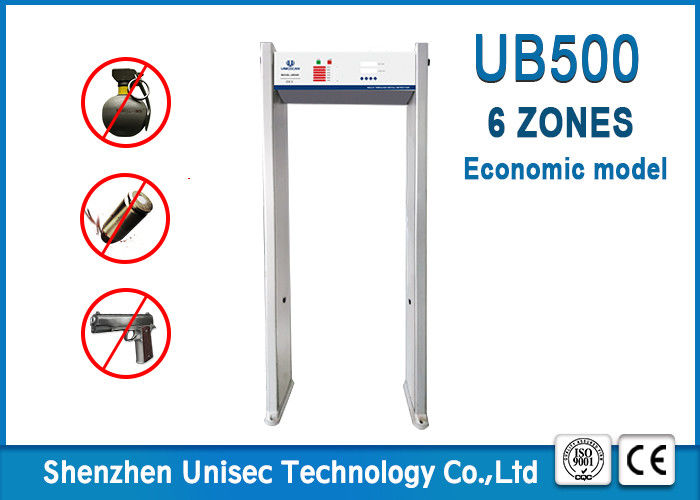

Walk through archway metal detector 6 zones model with 100 sensitivity
6 zones
100 sensitivity
5 digital LED counter
2 years warranty
| Sensitivity | 0-99 adjustable |
| Alarm way | Audio alarm and LED location lamp work at the same time |
| Display | 8 status led display |
| Pass rate | >50 persons/min |
| Power | 220V AC,50/60Hz |
| Power wastage | 35w |
| Working temperature | -10℃-45℃,≤95%RH |
| Tunnel size | 218(L)*48(W)*10(H) cm |
| Dimension | 229(L)*56(W)*19(H) cm |
| Net weight | 60kg/set |
| Gross weight | 67kg/set |
Parameters:
1.Eighteen mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 100 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5. Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14.4-8 hours backup battery (Option).
Neutral Packing:
Q'TY: 1 PC
N.W.: 62 KGS
G.W.: 67 KGS
MEAS.: 2290*560*190mm+760*380*260mm=0.32CBM
2 Doors Panel Packed In 1 Carton Box:2290*560*190mm
Main Control Box Packed In 1 Carton Box:760*380*260mm
