| Product Name: | Dual View Baggage Scanner Machine | Tunnel Size: | 650(W) X500 (H) Mm |
|---|---|---|---|
| Power Consumption: | 1.0KW (Max) | Conveyor Speed: | 0.22m/s |
| Wire Resolution: | 38AWG | Anode Voltage: | 140~160KV |
| Spatial Resolution: | 1.0mm Horizontal And Vertical | Steel Penetration: | 40mm |
| High Light: | x ray scanning machine,baggage x ray machine |
||

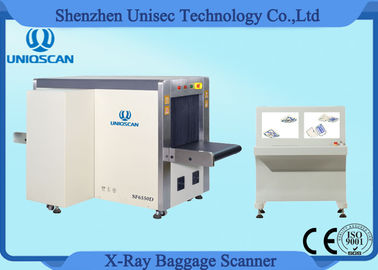

65*50cm X-ray Baggage Scanner Machine Dual View X-ray Baggage Inspection System
Brief :
1. With equipment to save electricity
2. X-ray generator is from Beijing KV tech
3. Interroll from Germany
4. Receiver from DEETEE Finaland
5. Protective cover on lead curtain to avoid lead pollution;
6. Local network supported
7. One-key shutdown control
8. Self-diagnosis function
9. TIP and training software , free programmable keys , real time diagnostic
General Specification:
| Tunnel Size : | 650 (W) ×500 (H) mm |
| Power Requirement: | 220V AC (±10%) 50±3Hz |
| Power consumption: | 1.0KW (Max) |
| Noise level: | <58dB |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 200 kg |
| Wire Resolution: | 38AWG |
| Spatial Resolution: | 1.0mm Horizontal and Vertical |
| Steel Penetration: | 40mm |
| Single inspection dosage: | < 1.2μGy |
| Leakage radiation: | <0.1µGy/h |
| Film Safety: | Guarantee ISO1600 Film |
X-Ray Generator Specifications:
| Tube Current: | 0.7~1.2mA |
| Anode Voltage: | 140~160KV |
| Cooling: | Sealed oil bath with forced air |
| Duty Cycle: | Rated for 100%Duty Cycle |
| Beam Direction: | Upward and Sideward |
| Beam Angle: | 80° |
| Detector: | L-shaped Array * 2 |
Environment Specifications:
| Operating temperature/humidity: | 0ºC ~ 45ºC/20% ~ 95% (Non-condensing) |
| Storage temperature/humidity: | -20ºC ~ 60ºC/20% ~ 95% (Non-condensing) |
Computer Specification:
| Processor: | I3-4340 (Dual core four thread) 3.6 GHZ 22nm 54W |
| Memory: | 4GDDR3 Loptop Memory |
| Hard Disk : | 1T |
Image Display:
| Display: | 19'' High Resolution LCD Monitor *2 |
| Display Resolution: | 1280*1024;24 bit/pixel Color |
| Contrast Sensitivity: | 24 Visible Levels, 4096 Gray Level |
| Image storage: | 100,000 pictures in real time (can be customized) |
| Zoom: | 64 Times Enlarge, Whole screen continuous observation |
UNIQSCAN Baggage Scanner Project For PyeongChang 2018 Winter Olympics:
