650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine

650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine
650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine

Large Image :  650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF6550
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Product Name:: X Ray Baggage Scanner Conveyor Speed:: 0.22m/s
Power Wastage:: 1.0 KW (Max) Tunnel Size :: 650 (W) ×500 (H) Mm
Conveyor Max Load:: 170 Kg Wire Resolution:: 40AWG
Steel Penetration:: 40mm Single Inspection Dosage:: <1.2μGy
High Light:

x ray scanning machine

,

airport x ray machines

650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine



Advantages:

  • High penetration:650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 0650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 040mm
  • Penetration:40AWG
  • Few leakage:0.1 Gy/h (at a distance of 5cm From external housing)
  • Conveyor Max Load:170kg

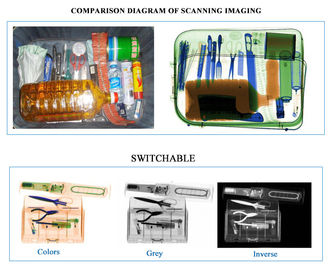

  • Color image:Orgnaic in orange, Inorganic in blue, Mixture in green.
  • Protective cover on lead curtain to avoid lead pollution;
  • Sound and light alarm;
  • Local network supported;



General Specifications:

Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg
Tunnel Size : 650 (W) ×500 (H) mm
Wire Resolution: 40AWG
Steel Penetration: 40mm
Leakage radiation: <0.1µGy/h
Single inspection dosage: <1.2μGy



X-RAY GENERATOR:

Tube Current: 0.4-1.2mA(adjustable)
Angle: 80°
Orientation: Upward
Anode Voltage: 80-160KV(adjustable)





OPERATING ENVIRONMENT:

Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <58DB



X-RAY Sensor: L-shaped array detector, 24bit , Dual Energy



Image Performance System:

  • Display: High-resolution 19 inch color LCD display
  • Color quality: 24-Bit real colors based on materials
  • Edge enhancement: Object contour edge is more distinct
  • Super image enhancement: Image detail is more distinct
  • High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  • Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  • Magnifier: Partial magnifying function
  • Brightening/dimming: Increase/Decrease brightness of image
  • Image recurrence: Display the previous twenty images and process any one of them
  • Image restoration: Restore image to initial status
  • Image storage: Real-time store any image and process it in operation status



Multi-energy: High/low energy: Switch from high energy to low energy



Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder



Special features:

  • Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time,
  • Safety ray: Ray is transmitted under automatic control, avoiding the error,
  • One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
  • Eagle eye: Capable of expediently observing the magnifying area
  • Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Delivery time:

  • One week (When there is stock)
  • Two week (When there is no stock)

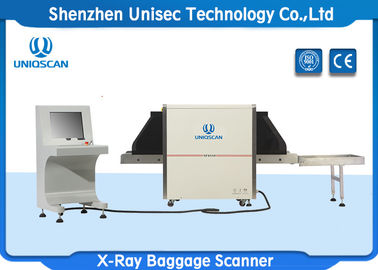

Product Pic:

650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 2

650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 3650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 4650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 5650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 6



650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 7

650 × 500 Mm Tunnel Size X Ray Baggage Security Scanner 40AWG Wire Resolution X Ray Baggage Inspection System Machine 8





Packing and Shipment:



Packing details carton packing
1 set/ctn , 2 wooden
Packing Size: (L)2800*1450*2080mm & 1440*1250*710mm
Gross Weight:1200 KG
Payment terms T/T, Western Union, Cash,L/C
Shipping methods By air (5-7days, most expensive)
By express (3-7days, more expensive)
By sea (15-28days, cheapest)
