600 * 400mm X Ray Baggage Scanner Machine , Airport Security Scanners For Parcel

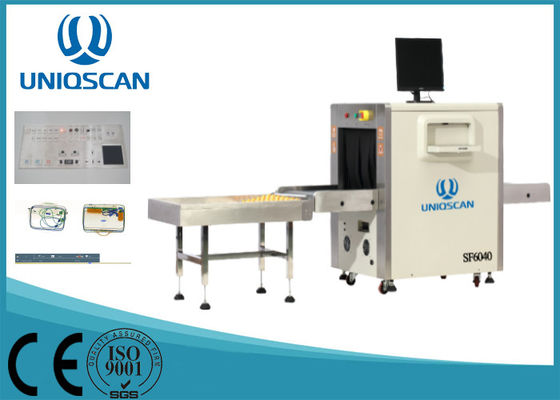

Large Image :  600 * 400mm X Ray Baggage Scanner Machine , Airport Security Scanners For Parcel

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF6040
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: Wooden box
Delivery Time: in one week
Payment Terms: T/T
Supply Ability: 100sets per month
Detailed Product Description
Product Name:: Security Screening Equipment Conveyor Speed:: 0.22m/s
Tunnel Size:: 600(W)*400H)mm Wire Resolution:: 40AWG
Cooling / Duty Cycle:: Oil Cooling /100% Image Grey Level:: 4096
Generate Angle:: 80° Power Consumption:: 1.0KW (Max)
High Light:

security luggage scanner


luggage x ray machine

hold baggage X Ray Luggage Scanner , 600*400mm x ray baggage scanner
Competitive Advantage:

  1. Innovative & Economical

  2. World Class Reliability
  3. Long-Term Flexibility
  4. Ease of Use Increases Efficiencies
  5. Ease of Maintenance
  6. Competitive Price and Professional Service

General Specifications:

Tunnel Size:600(W)*400H)mm
Conveyor Speed:0.22m/s
Conveyor Max Load:150kgs
Wire Resolution: 40AWG
Spatial resolution:horizontal: 1.0mm, vertical:1.0mm
Penetration:40mm Steel
Film Safety:Guarantee ISO1600 Film
X-ray Leakage:<1μGy/h (at a distance of 5cm From external housing)
Pass rate:720 bags per hour
Beam direction:Upward
Generate angle:80 degree
Anode Voltage:140-160Kv
Anode power:0.7 to 1.2mA
Cooling / Duty Cycle:Oil Cooling /100%
X-ray Sensor:L-Shaped Photodiode Array (mono-energetic), 12bit Deep
Monitor:High Resolution Color, LCD Accord, 19 inch
Image Processing:

Edge enhancement, image strengthening, image lightening,
reducing darkening, image returning, image retrieval.

Image Grey Level:4096
Image Max Resolution:1024 * 1280 pixel
Image Processing:24bit for processing real time
Image storage:Storage 60000 pictures in real time
Zoom:max 16 Times Enlarge, Whole screen continuous observation
Operation temperature/Humidity:0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
Operation Power:220VAC(±10%)50±3Hz
Power Consumption:1.8 KW (max), 0.3KW(working)

Image Display:

  1. 19’’ High Resolution LCD Monitor
  2. Display Resolution: 1280*1024;24 bit/pixel Color
  3. Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
  4. Image storage: 100,000 pictures in real time (can be customized)
  5. Zoom: 64 Times Enlarge, Whole screen continuous observation
  6. Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
  7. Edge enhancement: Object contour edge is more distinct
  8. Super image enhancement: Image detail is more distinct
  9. High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  10. Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  11. Brightening/dimming: Increase/Decrease brightness of image
  12. Image recurrence: Display the previous twenty images and process any one of them
  13. Image restoration: Restore image to initial status
  14. Assist to detect drug and explosive powder

Special features:

  1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
  2. Safety ray: Ray is transmitted under automatic control, avoiding the error
  3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
  4. Eagle eye: Capable of expediently observing the magnifying area
  5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software

Environment Specifications:

  1. Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
  2. Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)


  1. Commercial buildings
  2. Factories(to find needle in clothing, shoes, bags)
  3. Courthouses
  4. Embassies
  5. Government buildings
  6. Military installations
  7. Prisons
  8. Hotels
  9. Schools
  10. Convention centers
  11. Security checkpoints

600 * 400mm X Ray Baggage Scanner Machine , Airport Security Scanners For Parcel 0
