Product Details:
Payment & Shipping Terms:
|
| Product Name: | Turnstile Gate | Material: | 304# Stainless Steel |
|---|---|---|---|
| Speed: | 35-40 Person/min | Lane Width: | ≤550mm |
| Tickness: | Head: 1.5mm , Cabinet:1.2mm | Direction: | Bi-directional |
| Highlight: | Vertical Tripod Turnstile Gate,2 Lanes Tripod Turnstile Gate,550mm Channel Pedestrian Turnstile Gate |
||

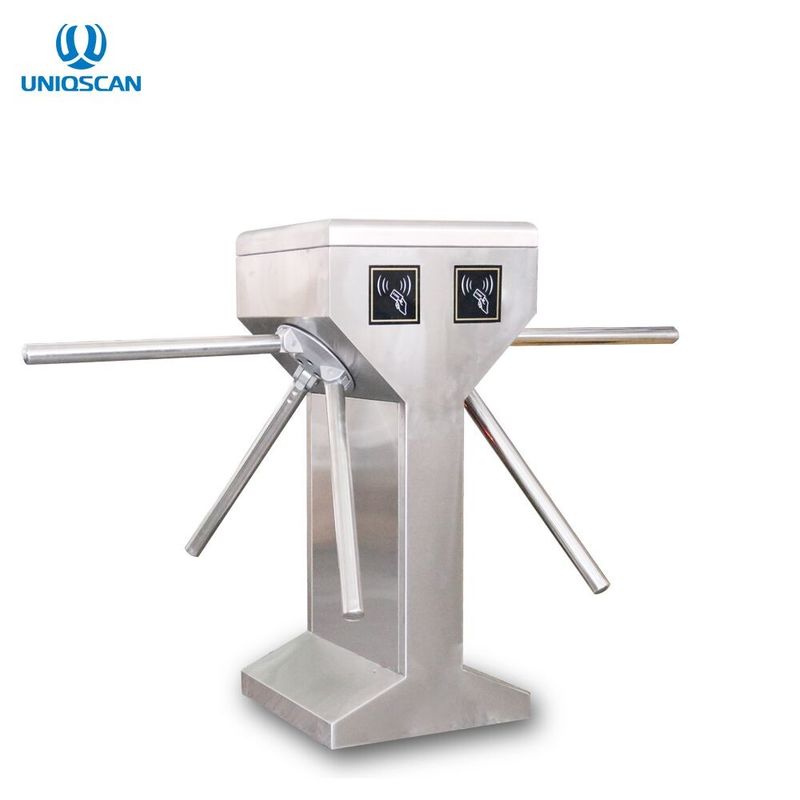

2 Lanes Vertical Tripod Turnstile Gate 550mm Channel Width Barrier Gate
Product Introduction:
Technical Parameters :
| PRODUCT INFORMATION | |
| Model | UT550-F |
| Brand | UNIQSCAN |
| Dimension | 420*330*980mm |
| Arm length | 500mm(norm) |
| Material | 304 # stainless steel |
| Tickness: | Head: 1.5mm , Cabinet:1.2mm |
| Input Voltage | AC220±10%,50HZ |
| Driving motor | 24V |
| Failure-free operation | 5 million/time |
| Weight | 45kg |
| Traffic speed | 35 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤550mm |
| Operating temperature | -30℃-70℃ |
| Communication interface | RS485/TCP/IP |
| Working environment | indoor and outdoor |
Scope:
Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.
ESD system: Combine with profession ESD tester for factory, special area entrance.
Detail photo :
Related Products :
Installation Case :
Factory :
Packing:
Our service
1. Provide free technical training, guidance and information of our products and accessories.
2. Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. Once receive the customer requirements and complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
