Product Details:
Payment & Shipping Terms:
|
| Name: | Hydraulic Rising Bollard | Control System: | Integrated Electro- Hydraulic |
|---|---|---|---|
| Voltage: | AC220V 50Hz Integrated | System Dynamic Power: | 350W Integrated |
| Rise Time: | ≤3-4S （adjustable） | Fall Time: | ≤3-4S （adjustable） |
| Material: | 304 Stainless Steel | Rising Height: | 600mm |
| Diameter: | 168mm,219mm,273mm (can Be Customized) | External Housing Size: | 430*430*1130mm/500*500*900mm |
| Waterproof: | IP68, Double Sealed | ||
| Highlight: | traffic control bollards,vehicle barrier bollards |
||

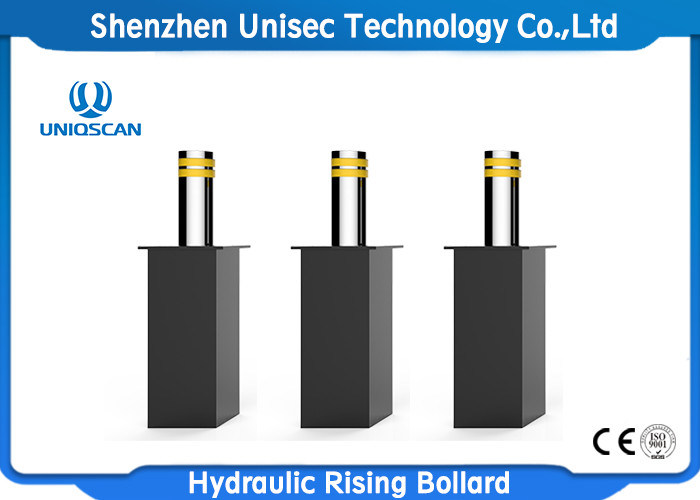

304 stainless steel Road Hydraulic rising bollard for Parking Stop
| Control System | Electro- Hydraulic |
| Passing pressure: | ≤120 tons container trucks |
| System Dynamic power | 3.75KW |
| Rise time : | ≤1-3S(adjustable) |
| fall time : | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage: | Three-phases 380V,(control voltage 24V) |
| Oil container: | 60liter |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Working Temperature : | -35℃~75℃(suitable) |
| Material: | A3 steel ,Spray anti-rust paint |
| Material thickness | 16mm,20 mm,25 mm (Optional) |
| Waterproof: | IP68, double sealed |
| LED light color | red,blue,green,yellow,purple,white…(customized) |
| Color: | red,blue,green,yellow…(can be customized) |
| Weight: | 1.5T |
Main Function
Hydraulic oil hose:PT international interface ,1/2 Double wire high pressure hose
