|Product Name:||Flap Turnstile||Dimension:||1200*300*980mm(can Be Customized)|
|Material:||304# Stainless Steel||Thickness:||Head:1.5mm; Cabinet:1.2mm|
|Working Voltage:||AC220±10% V||Lane Width:||≤600mm|
|Speed:||35-40 Person/min||Infrared Sensor:||3 Pairs (Can Be Customized)|
|Gross Weight:||Approx. 70KG||Motor:||Single / Double Motor|
flap barrier turnstile,
flap barrier system

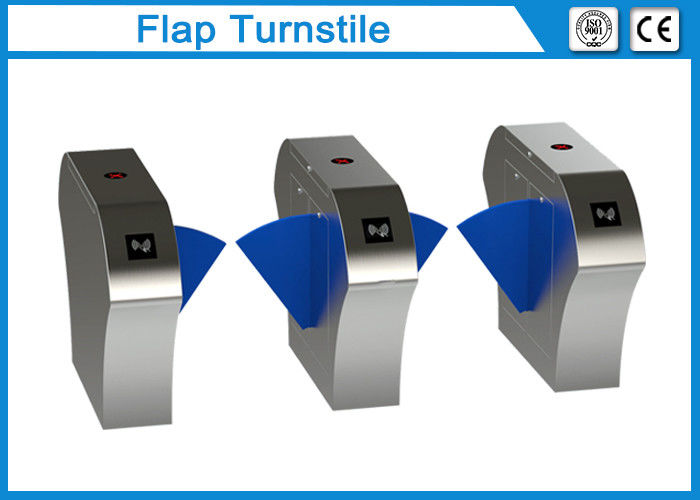

304 Stainless Steel Flap Barrier Gate Turnstile Security For Ticket Checking
1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
Dry contat relay with 12V OR 24V pulse.
TCP/IP communication with computer.
|Max power consumption||35W|
|Working temperature||-25 to +70degree|
|Dimension excluding bars||1200X300X980mm(Can be customized as per requests)|
|Net weight including bars||52kg|
|Optional devices||1.Fingerprint reader 2.Face recognition 3.Card collector|
4.Card reader 5.2D scanner 6.Palmprint reade
