Product Details:
Payment & Shipping Terms:
|
| Operating Temperature: | -40℃ To +85℃ | Relative Humidity: | 99%,non-condensing |
|---|---|---|---|
| Ip Grade: | IP55 | External Dimension: | 2250*850*500mm |
| Internal Dimension: | 2051*710*500mm | Fold Dimension: | 889*606*484mm |
| Packing Dimension: | 1000*700*570mm | Net Weight: | 45kg |
| Gross Weight: | 50kg | Sensibility Levels: | 200 Adjustable |
| Highlight: | walk through x ray machine,walk through safety gate |
||

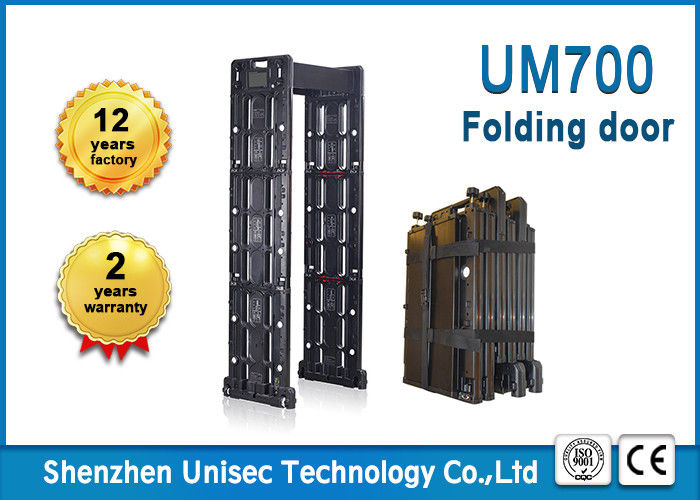

UNIQSCAN UM700 24 zones indoor and outdoor used, foldable and portable walk through metal detector
1. Specifications
Operating temperature:-40℃ to +85℃
Relative humidity:99%,non-condensing
Ip grade:ip67
External dimension:2250*850*500mm
Passage dimension:2051*710*500mm
Fold demension:889*606*484mm
Packing dimension:1000*700*570mm
Net weight:45kg
Gross weight:50kg
[Characteristic & Function]
Ø Self diagnostic, it will inform the user when exit the system.
Ø Memory Feature Stores Settings for last operator when power off.
Ø DSP and Microprocessor Controlled , login into the control panel safely.
Ø Head-to-Toe, Zone Specific Detected.
Ø 300 adjustable sensibility levels.
Ø Potable and foldable, waterproof
Ø There are 16 individual detect zones.
Ø 7-inch LCD touch screen, simple operation
Ø Remote control
Ø IP67 Superior waterproof performance
Ø Self calibration once power on.
Ø Automatic counting function
Ø Single person assembly without tools-in less than 5 minutes.
Ø Backup battery (Option)
2,Certificate
3,Package
