22 Inch Screen Fixed Type Under Vehicle Inspection System UV300F 4GB DDR3

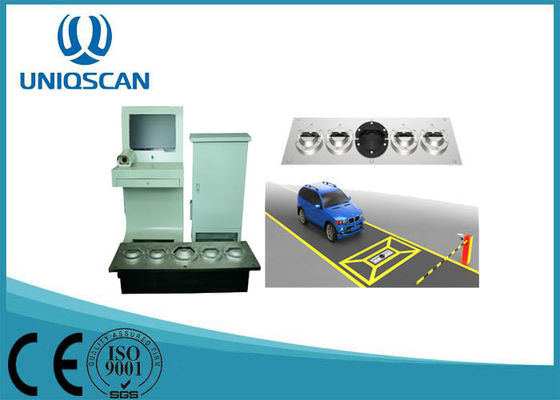

Large Image :  22 Inch Screen Fixed Type Under Vehicle Inspection System UV300F 4GB DDR3

Product Details:
Place of Origin: China
Brand Name: uniqscan
Certification: CE,ISO
Model Number: UV300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 3-7 work days after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100sets per month
Detailed Product Description
Product Name: Under Vehicle Inspection Scanner Vehicle Image Scaling:: 16 Times
Display Resolution:: 1920 * 1080P Scene Image Display:: 1 Channel
Working Voltage:: DC24V Power Supply:: AC110V-240V/50-60Hz
Loading Weight:: 30 Tons Weight:: 180kg
High Light:

under vehicle surveillance system


under car bomb detector


22 inch Screen Fixed Type Under Vehicle Inspection System more than 4GB DDR3



  • 1. Store or load time: <1 second;
  • 2. Vehicle Image local magnification: > 2 times;
  • 3. Vehicle Image scaling: 16 times;
  • 4. Vehicle image display mode: large format transverse;
  • 5. Vehicle image storage format: BMP or JPEG;
  • 6. System interface language: English (can be customized);
  • 7. Display resolution: 1920 * 1080P
  • 8. Communication interface: RS232/RS422;
  • 9. Scene image display: ≥1 channel
  • 10. Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image
  • 11. Scan mode: linear scanning, the ground sensor coil trigger;
  • 12. Vehicle speed: 1-60km/h, suggest speed : less than 30km/h
  • 13. View angle: 175 degrees
  • 14. Image Longitudinal resolution: 2048 pixels CCD;
  • 15. Scanner connecting cable: 100 meters (can be customized)
  • 16. Lighting components : Four single sealed LED surface light source ;Life : 100,000h
  • 17. Under Vehicle image scanner with a unique open-wide field scan design;
  • 18. Working voltage: DC24V
  • 19. Power Supply:AC110V-240V/50-60Hz
  • 20. Structure design:single sealed design;
  • 21. Loading weight: 30 Tons
  • 22. Scanner size: 1200*350*210mm
  • 23. Weight: 180kg
  • 24. Environment temperature: -40 degrees - +70 degrees
  • 25. License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )


  • 1. Display:22 inch color LCD Screen
  • 2. CPU:INTEL core Quad-Core Processor
  • 3. Motherboard : dedicated motherboard
  • 4. Memory : DDR3 , more than 4GB
  • 5. Hard disk : 500G high-speed hard disk
  • 6. Graphics card : DDR3, 192BIT independent graphics
  • 7. Appearance: stainless steel composite material
  • 8. Working current: 3A
  • 9. Working temperature : -20 ℃ ~ 55 ℃
