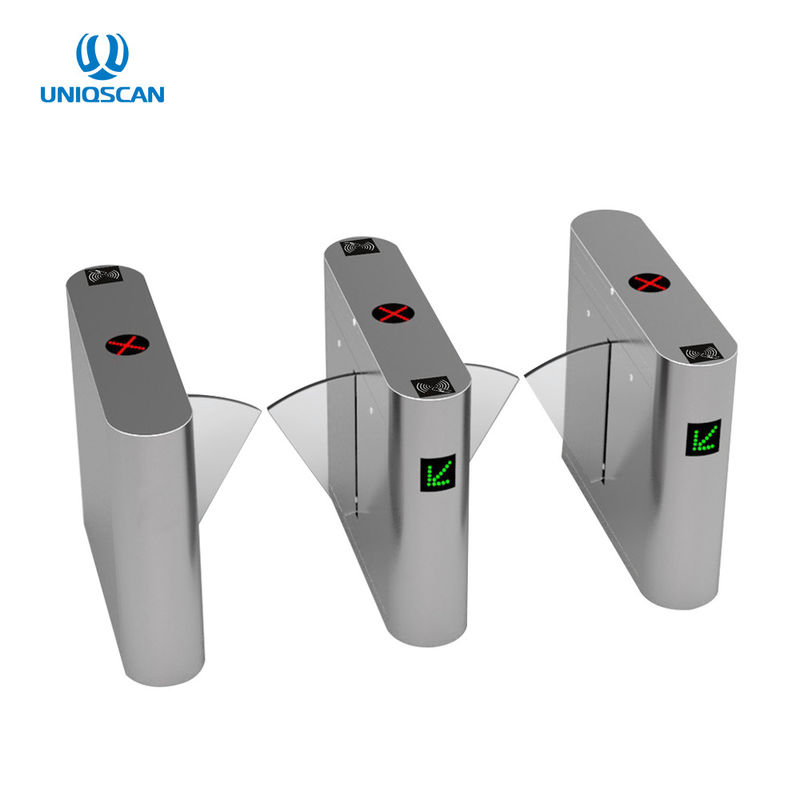

1S Security Turnstile Gate Retractable Flap Barrier For Office Building

Large Image : 1S Security Turnstile Gate Retractable Flap Barrier For Office Building

Product Details:

Place of Origin:	CHINA
Brand Name:	UNIQSCAN
Certification:	CE ISO
Model Number:	UT560

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	carton package
Delivery Time:	Shipment will take 15 days after receipt of full payment
Payment Terms:	T/T, Western Union

Contact Now

Detailed Product Description

Product Name:	Flap Turnstile Gate	Power Supply:	AC110V±10V,60Hz / AC220V±10V,50Hz
Operating Temperature:	-15°C ~ 50°C	Passing Speed:	40 Persons/min (normal Open) 30 Persons/min (normal Close)
Stainless Steel:	#304	Gross Weight:	70KG
Communication Interface:	TCP/IP	Dimension:	1200300980mm (Standard)
Package:	Plywood Box	Related Humility:	<=95%
Highlight:	1S Security Turnstile Gate , 1S Retractable Flap Barrier , Building Security Turnstile Gate

1S Security Turnstile Gate Retractable Flap Barrier For Office Building

For entrance and exit of office building electronic security flap turnstile gate

Model Number : UT560-B

1. Standard Specification:

Dimension	1200300980mm (Standard)
Stainless Steel	#304
Power Supply	AC110V±10V,60Hz / AC220V±10V,50Hz
Passing Speed	40 persons/min (normal open) 30 persons/min (normal close)
Response Time	1s
Communication Interface	TCP/IP
Operating Temperature	-15°C ~ 50°C
Related Humility	<=95%
Package	Plywood Box

Product Description

Standard product features:

1) It has fault self-test and alarm prompt function, which is convenient for users to maintain and use;
2) The operating state of the programmable device through the built-in small push panel on the main control board;
3) Anti-pinch and anti-collision function, when the resistance is blocked during the swing arm reset, the motor will automatically stop working within the specified time. After the default delay, it will be reset again (until reset), and the force is very small (≤2Kg );
4) Anti-shock function, the swing arm is automatically locked when no open signal is received;
5) The swing arm is synchronously adjustable (for double swing);
6) With automatic reset function, the system will automatically cancel the user's permission for the passage when the switch is not open within the specified time;
7) Freely adjustable normally open or normally closed to meet the requirements of different venues;
8) It can be connected with a variety of card reading devices to receive relay switch signals;
9) One-way and two-way pendulum function, which can control the entry and exit of personnel in one direction or two directions;
10) Remote control and management can be realized directly through the management computer;
11) Delay automatic reset, the system defaults to 10 seconds (adjustable) automatic reset after turning on;
12) The power-off swing arm is automatically opened and automatically closed when it is powered, which meets the fire protection requirements.

3. Optional features:

1) Sound and light alarm functions, including illegal intrusion alarm, anti-pinch alarm, etc.;
2) Counting function;
3) Infrared reset function;
4) The chassis is lengthened, the swing arm is lengthened, and so on.

4. Main structure and configuration

SUS304 standard case
Stainless steel swing arm
Turnstile control PCB
Direction indicator board
Power supply
Motor
Movement and transmission part 1 set
Infrared sensor 3 pairs

Introduce:

The wing gate is a high-end technology product for intelligent management of personnel passages. It is an upgraded product of smart swing gates and three-roll gates. The product adopts an industrial-grade circuit control system and a humanized and scientific mechanical transmission design. The product has stable performance, complete functions, user-friendly design, and high-grade. It is mainly used in high-end and crowded places such as subways, docks, clubs, smart buildings, villa communities, and hotel lobbies.

The device is compatible with various access control identification system equipment, such as proximity card access control, biometric access control, electrostatic test access control, etc., through the simple docking with the swing gate, intelligent channel control and management can be realized.
