High Definition 50 km / H Under Vehicle Surveillance System For Security Checking

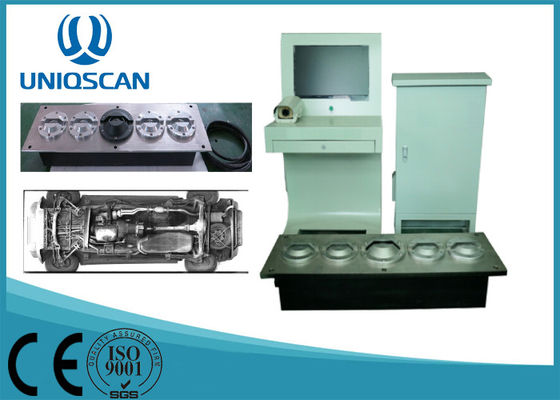

Large Image :  High Definition 50 km / H Under Vehicle Surveillance System For Security Checking

Product Details:
Place of Origin: China
Brand Name: uniqscan
Certification: CE,ISO
Model Number: UV300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 3-7 work days after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100sets per month
Detailed Product Description
Product Name: Under Vehicle Surveillance System Vehicle Image Scaling:: 16 Times
Resolution:: 2048 Camera: Sensor:: Line Scans CCD
Working Voltage:: DC24V Shutter Speed:: 1/50 To 1/20000 Or Better
Operating Temperature:: -10℃ To 55℃ Storage Temperature:: -40℃ To +75℃
High Light:

under vehicle inspection mirror


under vehicle scanning system


50km/h Under Vehicle Surveillance System For Security Checking , High Definition


Under vehicle inspection system UV300F

1,Anti terrorism,drugs,bombs weapons ,force protection and homeland security;

2,License plate & Vehicle Recogniction;

3,System support color scanning images displayed .


Features :

Auto digital line scan, high-resolution undercarriage imaging
High automation, easy to be used
Applicable to variety of vehicles, wide vision
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed
The UVSS is able to handle vehicles moving at speed ranging from 0-40km/hr
Undercarriage image can be stored, retrieved, searched or compared with other images

A variety of image processing methods: enlarge(Magnify current and past images 4x Zoom),

stretching and cutting

Multi entrance management model, management, and statistics of entering and exiting vehicles
Flexible detection process can be made on site to satisfy the needs of various work conditions

Option of automatic number plate recognition system available,

associative storage of various vehicle information and undercarriage images

Image monitoring, video recording for different scenario
The system able to transfer the work record report to Microsoft excel sheet
Support networking and remote monitoring
System support multi language and color images displayed


Advantage of UVSS:

No need to park vehicle, can bear speed below 40km/h
Whole image display ion monitor, can zoom, playback, sign in the images
Operator can zoom and save image
Inductive loop sensor


Embedded Under Vehicle Imaging Equipment :

Camera: Sensor: line scans CCD, Resolution: 2048, Power Supply: 24VDC, 5A

Shutter speed:1/50 to 1/20000 or better
Illumination: LED, Power Supply: 24VDC, 150W
Size: 1200mm x 350mm
Operating Temperature Range: -20 °C to +60 °C
Max Field of view :170degree ; Camera passed CE certificate
Water-proof (IP68) Scanning Unit ,bear the weight of 40 tons




Controller :

  1. Input: 2 channels induction coil
  2. Output: 1 Channel switch type 24VDC
  3. Communication port: RS485, Ethernet (Optional)
  4. Operating Temperature: -10°C to 60°C



PC Specs :

1. CPU: Intel Centurion Duo or higher, Memory: 2G, Hard Disk: 500G

2. Display: 22” LCD, can choose a vice display to show the image independently (optional)

3. Scene Video Record: 4 channel, Compression algorithm of scene video: H264




Specifications of Number Plate Reading System :


  • Pickup device: 1/4 inch CCD image sensor
  • System of signal: PAL
  • Horizontal Resolution: 600TV Line
  • Min Illumination:0.5 lux/f1.2
  • Optical Zoom:27x
  • Digital Zoom: 10x
  • Backlight compensation:Auto
  • AGC:Auto
  • White balance:Auto
  • Electronic Shutter: 1/50-1/100000 sec
  • S/N Ratio :48db
