80 Watt Under Vehicle Inspection Camera UUVS WUV300F 50 - 60HZ Frequency

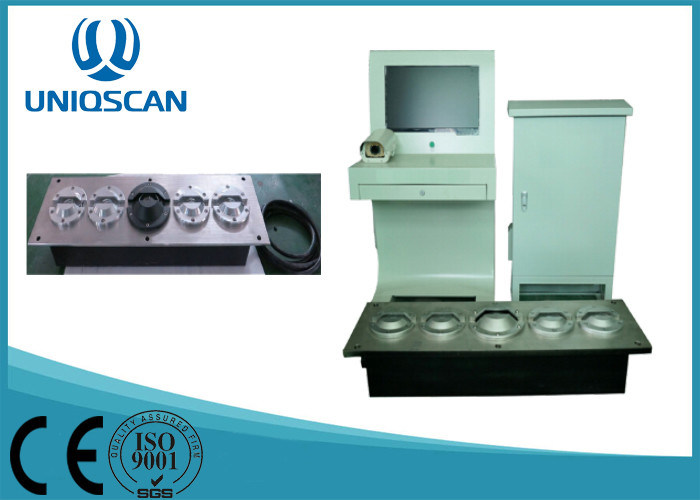

Large Image :  80 Watt Under Vehicle Inspection Camera UUVS WUV300F 50 - 60HZ Frequency

Product Details:
Place of Origin: China
Brand Name: uniqscan
Certification: CE,ISO
Model Number: UV300F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden case
Delivery Time: 3-7 work days after payment
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100sets per month
Detailed Product Description
Product Name: Under Vehicle Surveillance System Memory:: 2G (optional 4G)
Display Resolution:: 1920 * 1080P Power Supply:: 24VDC
Water-proof Grade:: IP68 Power Supply:: AC110V-240V/50-60Hz
Operating Temperature:: -10℃ To 55℃ Storage Temperature:: -40℃ To +75℃
High Light:

under vehicle search mirror


under vehicle scanning system


80 Watt Under Vehicle Inspection Camera (UUVS) with 50-60HZ Frequency



 Auto digital line scan, high-resolution undercarriage imaging.
 High automation, easy to be used.
 Applicable to variety of vehicles, wide vision.
 Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
 Undercarriage image can be stored, retrieved, searched or compared with other images.
 Flexible detection process can be made on site to satisfy the needs of various work conditions.
 Image monitoring, video recording for different scenario



Advantage of UVSS:

 No need to park vehicle, can bear speed below 30km/h
 Whole image display ion monitor, can zoom, playback, sign in the images.
 Operator can zoom and save image
 Time of image display after scan <1s
 Time of image saving or loading:<1s


Technical Specification:


Camera CCD Line scan camera
Resolution 5000* 2048 pixels
Pixels size 14μm*14μm
linear array 28mm
ADC Resolution 12 bit
Image Black/white (color optional)
Power Supply 24VDC
Transfer interface/distance Gigabit Ethernet/100m
LED Illumination Power Supply 24VDC, 150W
Embedded scanning part size 1200mm x 350mm
Water-proof grade IP68
Operating Temperature -20 ℃ to +70 ℃




  1. Input: 2 channels induction coil
  2. Output: 1 Channel switch type 12VDC
  3. Communication port: RS485, 1000M Ethernet (Optional)
  4. Operating temperature:-10℃ to 55℃

Computer :


Brand Grantech (SYM76941 VGGA)
CPU Intel (R) Celeron (R) CPU E3400, 2.6GHz /2.59GHz
Memory 2G (optional 4G)
Graphics 512M
ard Disk SATA2 Hard Disk 500G
USB 2.0 (Up to 2 pieces)
Monitor 21.5” LCD, resolution up to 1920*1080
Scene Video Record 4 channels
Compression algorithm of scene video H264
Operational system Windows XP, Windows 7 (32 bit)




  1.  Airport, prison, custom and other government department
  2. Large public parking spot entrance and exit
  3. Events, exhibition
  4. Military, prison and other important checkpoints

Optional :


  1. ALPR-Automatic License Plate Recognition
  2. Driver Face Capture Camera
  3. DVR
