SF6550 Hotel use X Ray Baggage Scanner , Dual Energy X ray Inspection System

China SF6550 Hotel use X Ray Baggage Scanner , Dual Energy  X ray Inspection System supplier

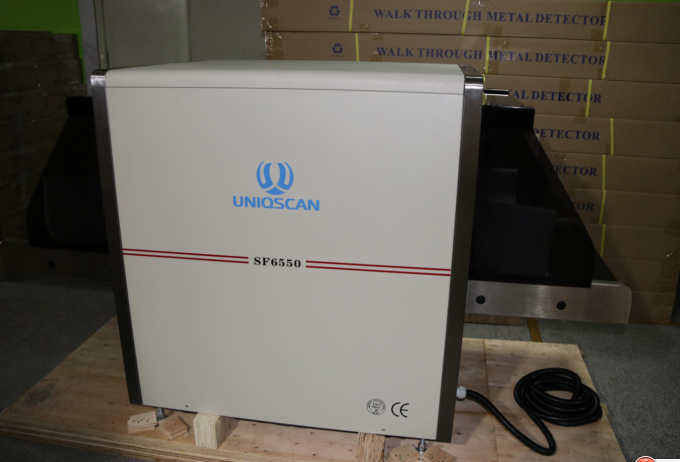

Large Image :  SF6550 Hotel use X Ray Baggage Scanner , Dual Energy X ray Inspection System

Product Details:

Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF6550

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: Wooden box
Delivery Time: one week
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000sets per month
Contact Now
Detailed Product Description
Product Name:: Baggage Scanner Conveyor Speed:: 0.22m/s
Power Wastage:: 1.0 KW (Max) Tunnel Size :: 650 (W) ×500 (H) Mm
Conveyor Max Load:: 170 Kg Wire Resolution:: 40AWG
Steel Penetration:: 40mm Single Inspection Dosage:: <1.2μGy



SF6550 Hotel use X baggage scanner , Dual Energy X ray Inspection System



Advantages:

  • High penetration:40mm
  • Penetration:40AWG
  • Few leakage:0.1 Gy/h (at a distance of 5cm From external housing)
  • Conveyor Max Load:170kg
  • Color image:Orgnaic in orange, Inorganic in blue, Mixture in green.
  • Protective cover on lead curtain to avoid lead pollution;
  • Sound and light alarm;
  • Local network supported;



General Specifications:

Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg

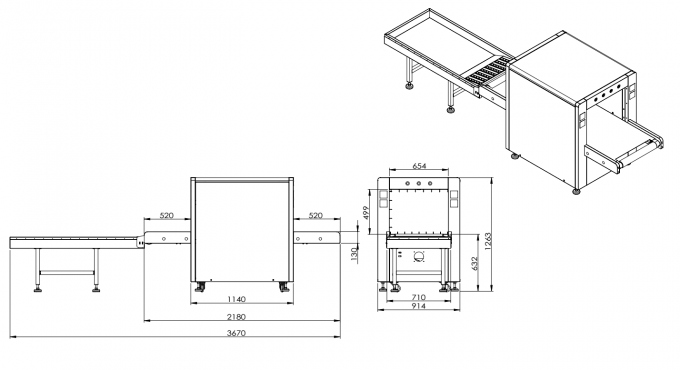

Tunnel Size : 650 (W) ×500 (H) mm
Wire Resolution: 40AWG
Steel Penetration: 40mm
Leakage radiation: <0.1µGy/h
Single inspection dosage: <1.2μGy



X-RAY GENERATOR:

Tube Current: 0.4-1.2mA(adjustable)
Angle: 80°
Orientation: Upward
Anode Voltage: 80-160KV(adjustable)





OPERATING ENVIRONMENT:

Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <58DB



X-RAY Sensor: L-shaped array detector, 24bit , Dual Energy



Image Performance System:

  • Display: High-resolution 19 inch color LCD display
  • Color quality: 24-Bit real colors based on materials
  • Edge enhancement: Object contour edge is more distinct
  • Super image enhancement: Image detail is more distinct
  • High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  • Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  • Magnifier: Partial magnifying function
  • Brightening/dimming: Increase/Decrease brightness of image
  • Image recurrence: Display the previous twenty images and process any one of them
  • Image restoration: Restore image to initial status
  • Image storage: Real-time store any image and process it in operation status



Multi-energy: High/low energy: Switch from high energy to low energy



Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder



Special features:

  • Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time,
  • Safety ray: Ray is transmitted under automatic control, avoiding the error,
  • One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
  • Eagle eye: Capable of expediently observing the magnifying area
  • Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Delivery time:

  • One week (When there is stock)
  • Two week (When there is no stock)



SF6550 Hotel use X Ray Baggage Scanner , Dual Energy  X ray Inspection System

SF6550 Hotel use X Ray Baggage Scanner , Dual Energy  X ray Inspection System
