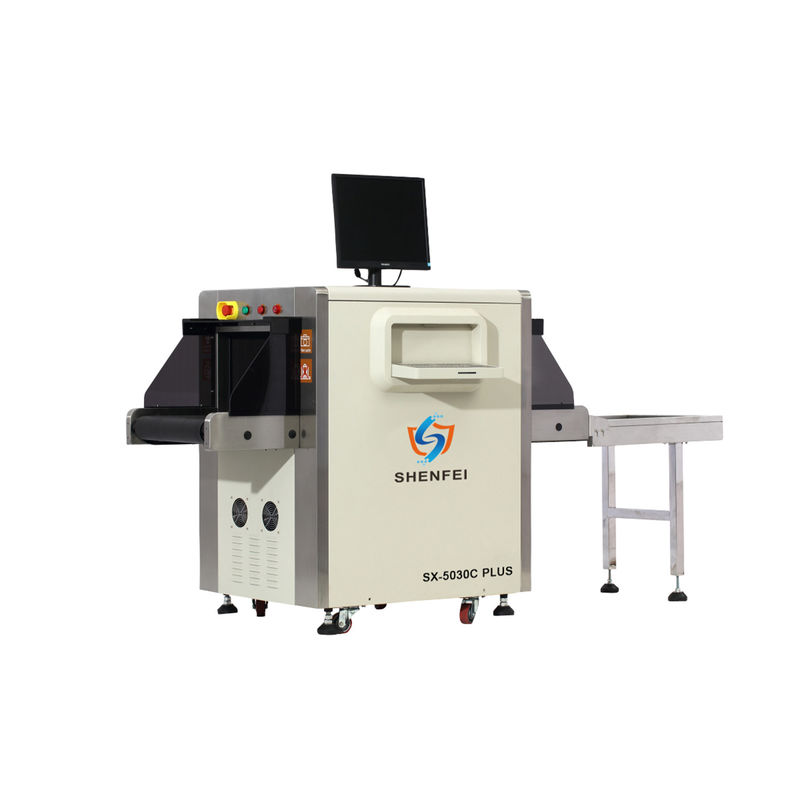

SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty

SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty
SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty

Large Image :  SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty

Product Details:
Place of Origin: China
Brand Name: SHENFEI
Certification: CE ISO
Model Number: SX-5030C PLUS
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiation
Packaging Details: Wooden box
Delivery Time: one week
Payment Terms: T/T, Western Union, L/C
Detailed Product Description
Product Name: X Ray Baggage Scanner SX-5030C PLUS X-ray Divergence Angle: 80 °
Conveyor Max Load: 160 Kg Single Inspection Dosage: <0.5 MR/h
Tube Current: 0.4-1.25MA Warranty: < 55DB
Certification: -10 °C / +50 °C Weight: 400kg
Steel Penetration: 15mm Xray Generator: 100KV
High Light:

x ray scanning machine

,

baggage x ray machine

Professional X ray baggage scanner SX-5030C PLUS US $10745



General Specifications



General Specifications
Tunnel Size : 500 (W) ×300 (H) mm

MODEL NO:SX-5030C PLUS
X-ray divergence angle: 80 °
Steel Penetration: 15mm
Conveyor Max Load: 160kg
Working temperature: -10 °C / +50 °C
Leakage radiation: <0.5 mR/h
Xray Generator: 100KV
Gross Weight: 400kg
Noise. < 55DB
Tube Current :0.4-1.25MA


Generator cooling/working periods:
Sealed oil bath with forced air/100%
Conveyor rolls in both two directions
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector

24bit
Single energy
Image Performance System:
Display: High-resolution 19 inch color LCD display



Applications:










SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty 0

SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty 1SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty 2SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty 3



Packing and Shipment:


Packing details carton packing
1 set/ctn , 2 wooden
Packing Size: (L)2800*1450*2080mm & 1440*1250*710mm
Gross Weight:1200 KG
Payment terms T/T, Western Union, Cash,L/C
Shipping methods By air (5-7days, most expensive)
By express (3-7days, more expensive)
By sea (15-28days, cheapest)



Shenzhen Unisec Technology Co., Ltd is a professional security scanner equipment manufacturer, specialized the development and research in the x-ray imagine tehnology, metal detection technology, explosive detection, liquid detection and relative security services.

OUR BRIEF
We always adhere to customer-centric, the principles of honesty and trustworthiness, is committed to efforts to improve and continuous innovate its own responsibility .

OUR TECHNOLOGY
We owns all of the intellectual property rights (IPR) to its core technologies ,and have a experience engineer team with senior x-ray detection exports, signal and imagine processing specialist , excellent technical support and maintance engineers.

OUR SERVICES
We strictly in accordance with the ISO9001 quality standard requirements from production research , manufacture, marketing to after services, established a complete quality management and assurance system . Also we take effective marketing management protection measures to control the products qulity ,working efficiency and service attitudes ,to ensure all our clients have our best quality products and best services.
SX-5030C PLUS Baggage X Ray Machine 2 Years Warranty 4
