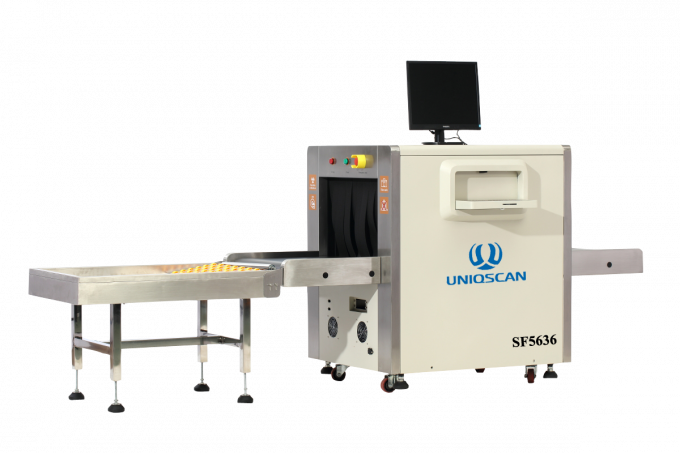

530 * 360 Mm Tunnel Size Security Baggage Scanner With 40mm Steel Penetration

530*360 mm Tunnel Size Security Baggage Scanner With 40mm Steel Penetration

General Specifications:

• Tunnel Size : 560 (W) ×360 (H) mm
• Conveyor Speed: 0.22m/s
• Conveyor Max Load: 150 kg
• Single inspection dosage: <1.01μGy
• Leakage radiation: <0.06µGy/h
• Wire Resolution: 40AWG
• Steel Penetration: 40mm
• Film Safety: For ISO 1600

X-RAY GENERATOR

• Orientation: Upward
• Tube Current: 0.4-1.25mA(adjustable)
• Anode Voltage: 80-160KV(adjustable)
• Angle: 80°
• Generator cooling/working periods:
• Sealed oil bath with forced air/100％

OPERATING ENVIRONMENT

• Storage Temperature: -20oC to 60oC
• Operating Temperature: 0oC to 45oC
• Relative Humidity:
• 20 to 95% non-condensing
• System Power: 220 VAC (±10%) 50±3HZ
• Power wastage: 1.0 KW (Max)
• Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:

• Display: High-resolution 19 inch color LCD display
• Color quality: 24-Bit real colors based on materials
• Edge enhancement: Object contour edge is more distinct
• Super image enhancement: Image detail is more distinct
• High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
• Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
• Magnifier: Partial magnifying function
• Brightening/dimming: Increase/Decrease brightness of image
• Image recurrence: Display the previous twenty images and process any one of them
• Image restoration: Restore image to initial status
• Image storage: Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder

Special features:

• Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time,
• Safety ray: Ray is transmitted under automatic control, avoiding the error,
• One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
• Eagle eye: Capable of expediently observing the magnifying area
• Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
