High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance

High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance
High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance

Large Image :  High Penetration Security Baggage Scanner SF5030C For Supper Marekt Entrance

Product Details:
Place of Origin: ShenZhen,China
Brand Name: Uniqscan
Certification: CE,ISO,RHOS
Model Number: SF5030C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: 1810(L)*910(W)*1450(H)mm.
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100 Set/Day
Detailed Product Description
Tunnel Size :: 500 (W) ×300 (H) Mm Conveyor Speed:: 0.22m/s
Conveyor Max Load:: 150 Kg Single Inspection Dosage:: <1.32μG
Film Safety:: Guarantee ISO1600 Film Leakage Radiation:: <0.06µGy/h
Steel Penetration:: 38mm Wire Resolution:: 40AWG
Spatial Resolution:: 1.0mm Horizontal And Vertical Power Requirement:: 220V AC (±10%) 50±3Hz
High Light:

x ray security equipment

,

security x ray scanner

UNIQSCAN Airport X-ray Baggage Scanner Luggage Scanner for checking bag in hotel







Advantage :


>> 4 corners with the LED light.
>> At the entrance and exit with the emergency button
>> Portable computer display can be locked and safe use.
>> Dual energy with DT Finland detecting board, very clear scanning images
>>LED display can show what you want to show to your customer, like "Security checking , Please don't put your hand inside "
>> This out looking we get suggestion from the TSA counselor from USA, so our machines look more serious and professional.


General Specifications:

Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150 kg
Single inspection dosage: <1.32μG
Film Safety: Guarantee ISO1600 Film
Leakage radiation: <0.06µGy/h
Steel Penetration: 38mm
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Power Requirement: 220V AC (±10%) 50±3Hz

X-RAY GENERATOR:

Tube Current: 0.4-1.2mA(adjustable)
Anode Voltage: 140-160KV(adjustable)
Angle: 80°
Generator cooling: Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT :

Storage Temperature: -20ºC to 60ºC
Operating Temperature: 0ºC to 45ºC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise: <55DB

Computer Specification:

Processor: I3-4340 3.6 GHZ 22nm 54W
Memory: 4GDDR3 Loptop Memory
Hard Disk : 1T
X-RAY Sensor: L-shaped array detector, 24bit

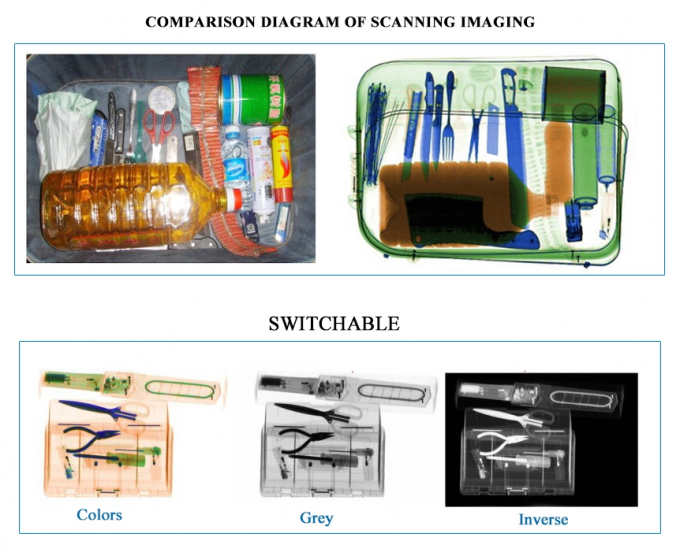

Image Performance System:

1. Display: High-resolution 19 inch color LCD display
2. Color quality: 24-Bit real colors based on materials
3. Edge enhancement: Object contour edge is more distinct
4. Super image enhancement: Image detail is more distinct
5. High penetration display: Increase the contrast of bright area in image to make the area appear more clearly
6. Low penetration display: Increase the contrast of dark area in image to make the area appear more clearly.
7. Magnifier: Partial magnifying function
8. Brightening/dimming: Increase/Decrease brightness of image
9. Image recurrence: Display the previous twenty images and process any one of them
10. Image restoration: Restore image to initial status
11. Image storage: Real-time store any image and process it in operation status


Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green
Assist to detect drug and explosive powder


Special features:
1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2. Safety ray: Ray is transmitted under automatic control, avoiding the error
3. One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4. Eagle eye: Capable of expediently observing the magnifying area
5. Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
6. TIP and training software , free programmable keys , real time diagnostic
7. Display date/time , baggage counter , User ID number

8. Review feature , recall previously image , zoom overview , step less zoom
