ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit

China ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit supplier
ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit supplier ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit supplier ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit supplier ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit supplier

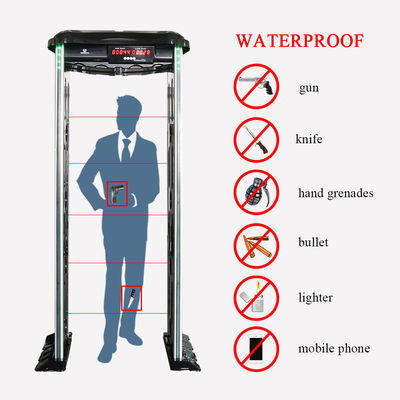

Large Image :  ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit

Product Details:

Place of Origin: Shenzhen
Brand Name: UNIQSCAN
Certification: CE; ISO9001;ISO14001
Model Number: UB500 Plus

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: 224cm (High) x 99cm (Wide) x 30cm (Deep)
Delivery Time: 2-5 work days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram, Cash.
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Main Box Packing Size: 200cm(High) X 71cm (Wide) X 30cm (Deep) Alarms Stype: Sound & Led Alarm
Standard: CE; ISO9001;ISO14001 Supply Ability: 1500 PCS Per Month
Power Supply: 85V-264V AC Sensitivity Sensitivity: 100 Level
Operating: -20℃ To 50℃ Material: ABS Material
Warranty: 2 Years Warranty Waterproof Rate: IP65
Detection Zone: 6 Zones

ABS Material Waterproof IP65 Arch Walk Through Gate Suit For Security Checking

【TECHNICAL PARAMETERS

External Dimensions:229cm (High) x 56cm (Wide) x 19cm (Deep)

Input voltage: AC85V-264V, 50/60Hz Power: <30W

Gross weight: 63.5KG

Working temperature: -20℃~ 50℃

Sensitivity: 100 steps adjustable

Alarm: Visible and audible alarm

Inner Dimensions: 200cm(High) x 70cm (Wide) x 60.5cm (Deep)





Characteristic & Function

Model Number UB500 Plus
Vertical dimension 229cm(High) x 56cm (Wide) x 19cm (Deep)
Vertical channel size 2000x700mm
Detection door packing size 229cm (High) x 56cm (Wide) x 19cm (Deep)
Net weight of main box/detection door 53.5KG
Gross weight of main box/detection door 63.5KG
Working voltage 65V~264V 50/60Hz
Power consumption 20W
Working frequency range 4-8KHZ
Working environment temperature -20℃ ~ 55℃
Waterproof rate IP65



New Design ABS Material Waterproof Arch Walk Through Metal Detector
1.Six mutual over-lapping detecting zones,
2.Simultaneous alarm from multi- zones;
3.Sensitivity adjustable: Each zone has 100 sensitivity level;
4.Sound & LED alarm: Both Side LED indicator; Easily show where the metal is;
5. Automatically count passengers and alarm times;
6.Alarm strength indicator on control panel;
7. Password protection, only the authorized person can operate;
8.Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction;
9. Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc;
10.Using high density fireproof material;
11. Program Self-diagnostic when power on,no need initial or periodic calibration;
12.Modularization design,easy for maintenance and replacement;
13.Sensitivity Test piece: One yuan Coin, omnidirectional detection;
14.Appearance design is ABS Material, good looking appearance. The gross weigh is light than other type walk through metal detector.
15. Waterproof:IP65, Can be used in indoor and outdoor, no matter is rainy or snowy.
16.4-8 hours backup battery (Option).

ABS Material Door Frame Metal Detector Waterproof IP65 Arch Walk Through Gate Suit



Neutral Packing:
Q'TY: 1 PC
N.W.: 53.5KGS
G.W.: 60.5 KGS
MEAS.: 2260*580*200mm+1025*820*400mm=0.467CBM
2 Doors Panel Packed In 1 Carton Box:2260*580*200mm
Main Control Box Packed In 1 Carton Box:1025*820*400mm



Our advantage

1.Product design, technology development, parts processing and sales integration services
2.One of the world's top four brands, leading technology, quality first, service first-class
3.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need

4. Brands cooperation,ODM,OEM
5.Sales of a complete set of technical solutions
6.Technical guidance and training for customers



Our service

  1. Technical support and 2 Years warranty
  2. Documents support
  3. Customer clearance assistance
  4. Support OEM OrODM
  5. 100% quality guarantee
  6. 7 days/24 hours service

Applications



Airports and Seaports, Electronic Factory, Government Buildings, Embassy, Police office, Court, Prisons and jails, Military Bases, Hospitals, Banks, Financial Institutions, Colleges and Schools, Hotels and Casinos,Power plants,Research Sites,Sports Stadiums, Public Transportation, Warehouses, Broadcast Studios, Museums, Night Clubs, secret Meetings and VIP Security, Gymnasium
