999 Sensitivity Digital Door Frame Metal Detector Security Guard Gate UB800

China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
China SHENZHEN UNISEC TECHNOLOGY CO.,LTD certification
Excellent! X RAY scanner be used on the airport, works very well and very stable !

—— Mr Anderson-USA

Good quality, good service! To cooperate with Uniqscan members is really happy thing!

—— Mr. Vijay-Saudi Arabia

It is my pleasure to have cooperation with UNIQSCAN,It is very stable used in the Hotal

—— Dr Mahammed-Bangeladesh

I can tell you are one of the best partners in China, because you are so professional in what you do, I can only praise your dedication and knowledge.

—— Mr stan -UK

I'm Online Chat Now

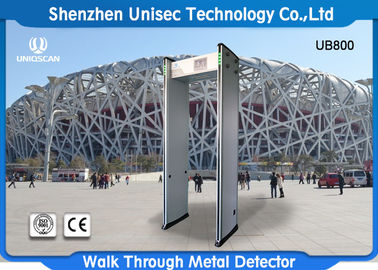

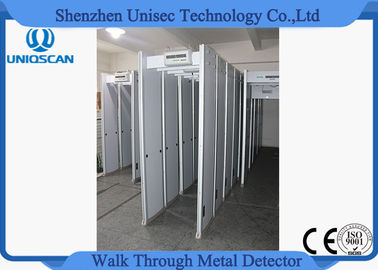

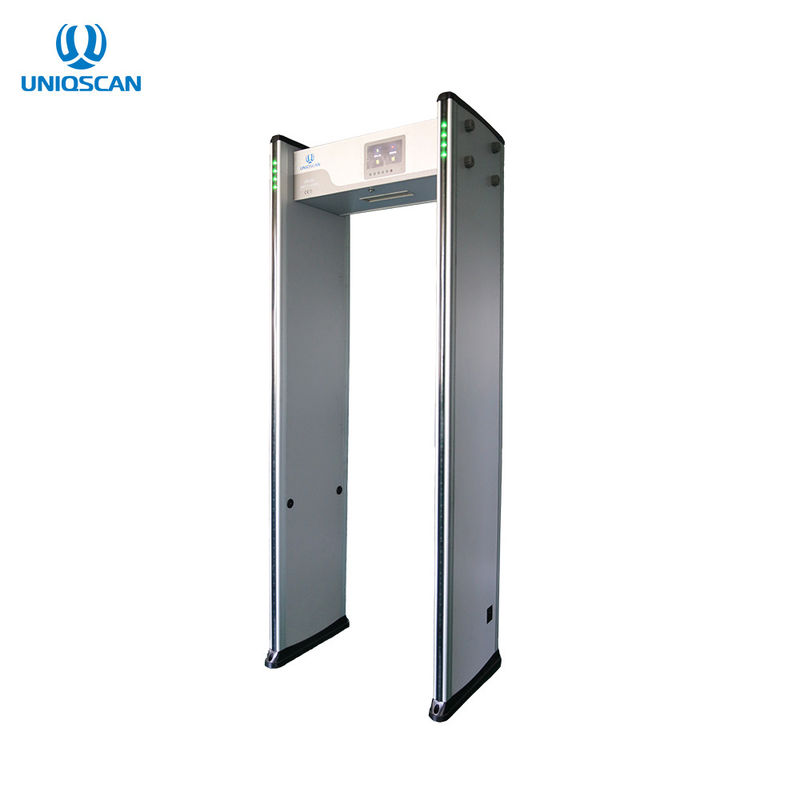

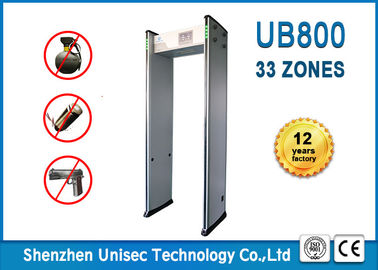

999 Sensitivity Digital Door Frame Metal Detector Security Guard Gate UB800

large.img.alt
large.img.alt
video play

Large Image :  999 Sensitivity Digital Door Frame Metal Detector Security Guard Gate UB800

Product Details:
Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE; ISO
Model Number: UB800
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: 850USD
Packaging Details: 2290*560*190mm; 760*380*260 mm
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000pcs/month
Detailed Product Description
Remote Control: Support Sensitivity: 256 Level
Battery: Option Voltage: 110-220V
GW: 67KG Zone: 33 /45 Zone
Material: Plywood+ Metal Detector Color: Grey
High Light:

metal detector security gate

,

dfmd metal detector



999 Sensitivity Digital Door Frame Metal Detector Security Guard Gate UB800



Function:


Walk through Metal Detector can easily detect weapons, such as knife and gun, and any metal articles which are hidden in human body.



Product Point :

1................................33/36 , 6/12/18 zones

2................................5 digital count

3................................Each zone has 999 sensitivity level

4................................Sound & LED alarm

5................................Alarm volume range from level 0 to 9

6................................Alarm tones Change from 1 to 9

7................................Password Protection

Parameters :

Detecting zone: 33/36 , 6/12/18 zones
Display way: 7.0 inch screen
Sensitivity: 0-999 adjustable
Power Supply: AC85V-264V
Working temperature: -20℃--+50℃
Working Frequency: 4KHZ—8KHZ
Gross weight: 67KG
Warranty: 2 years
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn



Specification:

>>Anti-interference function, using advanced interactive transmitting and receiving to avoid interference.

>>100 frequencies for option. To work with neighbouring gates at 50cm

>>Sound & LED alarm:Two Sides LED indicator easily show where the metal is.

>>Detecting speed:up to 100 passenger/ min.

>>Password protection,only the authorized person can operate.

>>Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.

>>Modularization design,easy for maintenance and replacement.

>>Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes,

>>Sensitivity Test piece: One yuan Coin, omnidirectional detection

>>Network support

>>Can be customized36zones(6/12/18 zones)

>>4-8hours backup battery (Option)

>>33 detecting zones,Simultaneous alarm from multi- zones;

>>Sensitivity adjustable: Each zone has999sensitivity level0-999 adjustable

>>7 inch color LCD screen

>>Infrared remote control

>>Using high density fireproof material

>>Automatically count passengers and alarm times

>>PASS and ALARMcount:up to 99999

>>High sensitivity: Ferrous/ non-ferrous /Alloy can be detected

>>15 preset programs for security applications

>>Alarm volume range from level0to 9

>>Alarm tones: Change from1to 9





Applications:

  • Commercial buildings;
  • Factories(to find needle in clothing, shoes, bags)
  • Courthouses;
  • Embassies;
  • Government buildings;
  • Military installations;
  • Prisons;
  • Hotels;
  • Schools;
  • Convention centers;
  • Security checkpoints.
  • Excellent system for schools, hotels, convention centers and event-based security requirements



Our Service:

  • All products purchased in our company are guaranteed to keep in good repair for two years.
  • If quality problems happen in guarantee period, our company will maintain for free.
  • Additionally, our company provides technical support and fittings for life.
  • If you are caught in some problems when using our products, welcome to contact us at any time
