SF5030A X Ray Baggage Inspection System With High - Resolution 19 Inch Color LCD Display

China SF5030A X Ray Baggage Inspection System With High - Resolution 19 Inch Color LCD Display supplier

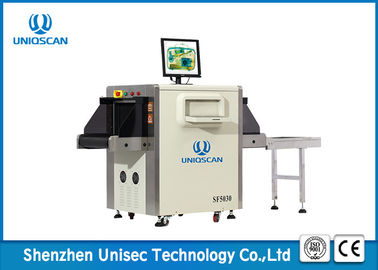

Large Image :  SF5030A X Ray Baggage Inspection System With High - Resolution 19 Inch Color LCD Display

Product Details:

Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE;ISO
Model Number: SF5030A

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: negotiation
Packaging Details: wooden case
Delivery Time: 5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500unit each month
Contact Now
Detailed Product Description
Tunnel Size: 500 (W) ×300 (H) Mm Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 Kg Single Inspection Dosage: < 1.32μGy
Wire Resolution: 40AWG Steel Penetration: 10mm
Film Safety: For ISO 1600 Orientation: Upward
Tube Current: 0.4~0.7mA(adjustable)

X Ray Baggage Inspection Machine Model SF5030A with High-resolution 19 inch color LCD display

X-Ray Baggage Inspection Machine

Model: SF5030A

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 100 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG

Steel Penetration: 10mm

Film Safety: For ISO 1600



X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~0.7mA(adjustable)

Anode Voltage:80KV

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Single energy

Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status



Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance





SF5030A X Ray Baggage Inspection System With High - Resolution 19 Inch Color LCD Display
