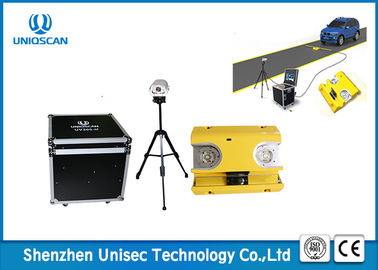

Fixed Type Under Vehicle Surveillance System Image Scanner With Open Wide Field Scan Design

China Fixed Type Under Vehicle Surveillance System Image Scanner With Open Wide Field Scan Design supplier

Large Image :  Fixed Type Under Vehicle Surveillance System Image Scanner With Open Wide Field Scan Design

Product Details:

Place of Origin: Shenzhen
Brand Name: Uniqscan
Certification: CE;ISO
Model Number: UV300-F

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: wooden case
Delivery Time: 5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500pcs every month
Contact Now
Detailed Product Description
Material: Fire-proof Store Or Load Time: <1 Second;
Vehicle Image Local Magnification: > 2 Times Vehicle Image Scaling: 16 Times;
Vehicle Image Display Mode: Large Format Transverse; Vehicle Image Storage Format: BMP Or JPEG;
Display Resolution: 1920 * 1080P Communication Interface: RS232/RS422
Scene Image Display: ≥1 Channel



Fixed Type Under Vehicle Surveillance System Image Scanner With Unique Open Wide Field Scan Design





Parameters:

1. Store or load time: <1 second;

2. Vehicle Image local magnification: > 2 times;

3. Vehicle Image scaling: 16 times;

4. Vehicle image display mode: large format transverse;

5. Vehicle image storage format: BMP or JPEG;

6. System interface language: English (can be customized);

7. Display resolution: 1920 * 1080P

8. Communication interface: RS232/RS422;

9. Scene image display: ≥1 channel

10. Speed identification: when the vehicle pass the scanner and stops suddenly, then restart, the device can identify automatically, system will display the complete vehicle image

11. Scan mode: linear scanning, the ground sensor coil trigger;

12. Vehicle speed: 1-60km/h, suggest speed : less than 30km/h

13. View angle: 175 degrees

14. Image Longitudinal resolution: 2048 pixels CCD;

15. Scanner connecting cable: 100 meters (can be customized)

16. Lighting components : Four single sealed LED surface light source ;

Life : 100,000h

17. Under Vehicle image scanner with a unique open-wide field scan design;

18. Working voltage: DC24V

19. Power Supply:AC110V-240V/50-60Hz

20. Structure design:single sealed design;

21. Loading weight: 30 Tons

22. Scanner size: 1200*350*210mm

23. Weight: 180kg

24. Environment temperature: -40 degrees - +70 degrees

25. License plate recognition (need customer provide the SDK LPR software of the exported country, we can integrate it to the UVSS without extra cost )



Computer:

1. Display:22 inch color LCD Screen

2. CPU:INTEL core Quad-Core Processor

3. Motherboard : dedicated motherboard

4. Memory : DDR3 , more than 4GB

5. Hard disk : 500G high-speed hard disk

6. Graphics card : DDR3, 192BIT independent graphics

7. Appearance: stainless steel composite material

8. Working current: 3A

9. Working temperature : -20 ℃ ~ 55 ℃

Fixed Type Under Vehicle Surveillance System Image Scanner With Open Wide Field Scan Design
