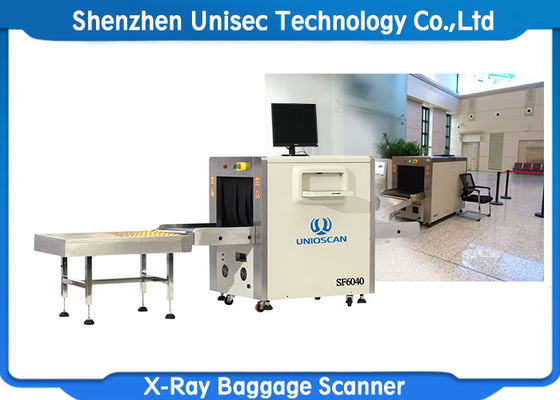

Middle Size Dual Energy X Ray Baggage Scanner With High Solution Scanning Display

Tunnel size 600*400mm UNIQSCAN middle size/dual energy with high solution scanning display X-Ray parcel/baggage scanner



1,General Specifications

Tunnel Size : 600(W) ×400(H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150 kg

Single inspection dosage: <1.01μGy
Leakage radiation: <0.06µGy/h

Wire Resolution: 40AWG

Steel Penetration: 40mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current: 0.4-1.25mA(adjustable)

Anode Voltage: 80-160KV(adjustable)

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit

Image Performance System:
Display: High-resolution 19 inch color LCD display
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier:                         Partial magnifying function
Brightening/dimming:       Increase/Decrease brightness of image
Image recurrence:              Display the previous twenty images and process any one of them
Image restoration:             Restore image to initial status
Image storage:                   Real-time store any image and process it in operation status

Multi-energy: High/low energy: Switch from high energy to low energy

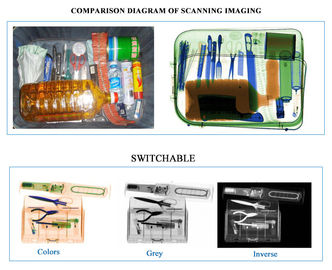

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Color quality: 24-Bit real colors based on materials



2,Detailed parts
