Product Details:
Payment & Shipping Terms:
|
| Product Name: | X-ray Baggage Scanner | Model: | SF10080 |
|---|---|---|---|
| Tunnel Size: | 1000(w)x800(h)mm | Conveyor Speed: | 0.22m/s |
| Generator: | L-shape | Monitor: | PHILIPS |
| High Light: | x ray security equipment,security x ray scanner |
||

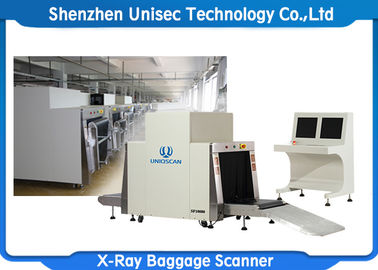

Big size X-ray baggage scanner SF10080 for logistics,customs and airport use
specification:
tunnel size:1000(W)x800(H)
Dual energy
conveyor speed:0.22m/s
wire resolution:40AWG
steel penetration:38mm
high-resolution 19 inch color LCD displayx2
Brief Introduction
The operation system is advanced technology which combined modern computer software technology, optical technology, electronic technology, vision technology, sensor technology, nondestructive detection technology and image processing technology. It is an effective way to do products research, failure analysis, reliable screening, quality evaluation, and technique improvement.
Function Description
a Virtuality 3D-imaging, live zoom, and zoom out.
b Grey level optimization, live pseudo-color, humanization design
c Ele-shooting, multiframe superposition, easy and fast.
d. Positive and negative image show with adjusted edge.
e. Dynamic memory, print, DVD reader etc output mode
f. soldered ball measuring technique
g. bubble area measuring, Bubble proportion calculation, can do coordinate setting and statistics for angle, radius, solder joint area, and welding point.
h. Control by mouse, soft keyboard. Very convenient.
i. Image storage: with timing calculation, can store 500,000pcs pictures.
j. Client’s pictures management: Can store in different client codes, and classified manage.
k. Picture save format: Can save into different format, and can all save into the specified file once automatically.
l. USB output: The equipment has multi-functional USB output, can store the data and image any time.
m. Operation management: Can set with different ID number of different operator in order to easy control andtraceable.
n. Picture color: black and white, color, and the inverted source can be arbitranily choose.
o. Picture zoom: entire zoom or part zoom can be arbitranily choose.
p Eagle eyes function: parts live zoom, with function of eagle eyes.
| Tunnel Size | 1000(W)×1000(H)mm |
| Conveyor Speed | 0.22m/s |
| Conveyor Max Load | 1000kg |
| Dose per Inspection | less than 1μGy/h |
| Wire Resolution | 38AWG |
| Spatial Resolution | Level: dia1.0mm, Vertical: dia1.3mm |
| Penetration | 36-38mm Stell |
| Film Safety | Guarantee ISO1600 Film |
| X ray Leakage | 0.2 μGy/h (at a distance of 5cm from frame house) |
| Monitor | 19inch |
X-ray Generator
| Generate Direction: | Upward L shape | ||||||||||||||||||||||||||||
| Generator Anger: | 80 degres | ||||||||||||||||||||||||||||
| Anode Voltage: | 150-200kv adjustable | ||||||||||||||||||||||||||||
| Anode power: | 1 to 1.5mA
X-ray Generator
|
Product advantage
a based on medical CT scanning image technology; 1000M channel high speed data acquisition.
b input automatically protection is safer.
c big size screen display, 24 inch medical screen display, provides focus image, exact-observation and easy to tell images, also can be full image.
d keyboard and mouse control
e Be with Industrial computer system, and Windows operation.
f Flexible combination: CT scanning, Intensifier, panel can be chose.
g Work power 150-200KV, in order to satisfy the different requirement.
h Defective products with NG choose, automatically stop and reject.
i Varying effects image display and picture processing.
j Quantifying image measuring and analysis
k Big size image can be one-time forming.
