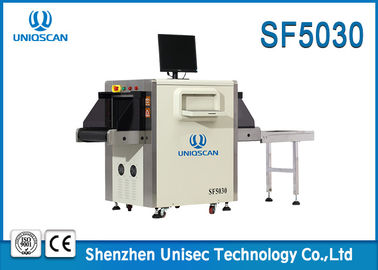

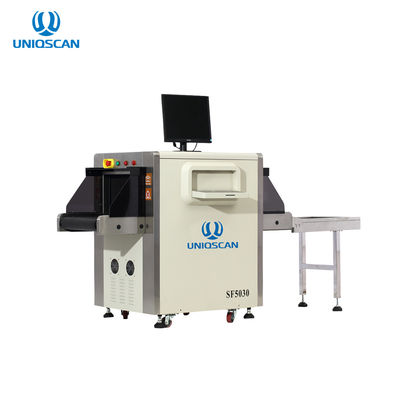

Large Image :  Security check x ray parcel scanner, security x-ray baggage scanner for Governement department

Product Details:

Place of Origin: China
Brand Name: UNIQSCAN
Certification: CE,ISO
Model Number: SF5030C

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotation
Packaging Details: wooden box
Delivery Time: 5 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1500pcs/month
Contact Now
Detailed Product Description
Tunnel Size: 500*300mm Penetration: 40mm
Generator: KV Generator Detection Board: DT Finland
Power Wastage: 1.0 KW(Max) Warranty: 2 Years

Security check x ray parcel scanner, security x-ray baggage scanner for Governement department



Model: SF5030C

General Specifications

Tunnel Size : 500 (W) ×300 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG (0.0787mm metal line)

Steel Penetration: 43mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~1.2mA(adjustable)

Anode Voltage:140~160KV

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity: 20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor: L-shaped array detector, 24bit

Dual energy



Image Performance System:

Display: High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status



Multi-energy: High/low energy: Switch from high energy to low energy

Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder



Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance.

Security check x ray parcel scanner, security x-ray baggage scanner for Governement departmentSecurity check x ray parcel scanner, security x-ray baggage scanner for Governement department
