560 * 360 Mm Security Check Airport Baggage Scanner With 0.22m/S Conveyor Speed

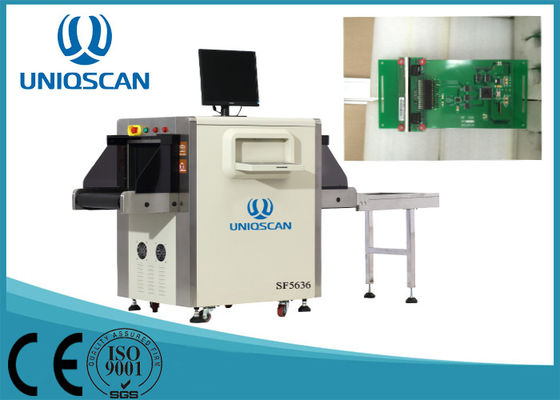

Large Image :  560 * 360 Mm Security Check Airport Baggage Scanner With 0.22m/S Conveyor Speed

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF5336
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: Wooden box
Delivery Time: in one week
Payment Terms: T/T
Supply Ability: 100sets per month
Detailed Product Description
Product Name:: X Ray Security Scanner Conveyor Speed:: 0.22m/s
Steel Penetration:: 40mm Wire Resolution:: 40AWG
Tunnel Size :: 560 (W) ×360 (H) Mm Orientation:: Upward
Tube Current:: 0.4-1.25mA(adjustable) Film Safety:: For ISO 1600
High Light:

airport luggage scanner


airport x ray scanner


0.22m/s Conveyor Speed X Ray Security Scanner With 560*360 mm Security Check


General Specifications:

  • Tunnel Size : 560 (W) ×360 (H) mm
  • Wire Resolution: 40AWG
  • Steel Penetration: 40mm
  • Conveyor Max Load: 150 kg
  • Leakage radiation: <0.06µGy/h
  • Single inspection dosage: <1.01μGy
  • Conveyor Speed: 0.22m/s
  • Film Safety: For ISO 1600


  • Orientation: Upward
  • Tube Current: 0.4-1.25mA(adjustable)
  • Anode Voltage: 80-160KV(adjustable)
  • Angle: 80°
  • Generator cooling/working periods:Sealed oil bath with forced air/100%


  • Storage Temperature: -20oC to 60oC
  • Operating Temperature: 0oC to 45oC
  • Relative Humidity:20 to 95% non-condensing
  • System Power: 220 VAC (±10%) 50±3HZ
  • Power wastage: 1.0 KW (Max)
  • Noise<55DB

X-RAY Sensor: L-shaped array detector, 24bit


Image Performance System:

  • Display: High-resolution 19 inch color LCD display
  • Color quality: 24-Bit real colors based on materials
  • Edge enhancement: Object contour edge is more distinct
  • Super image enhancement: Image detail is more distinct
  • High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  • Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  • Magnifier: Partial magnifying function
  • Brightening/dimming: Increase/Decrease brightness of image
  • Image recurrence: Display the previous twenty images and process any one of them
  • Image restoration: Restore image to initial status
  • Image storage: Real-time store any image and process it in operation status


Multi-energy: High/low energy: Switch from high energy to low energy


Color material identification: Organic objects in orange, inorganic objects in blue, mixture in green

Assist to detect drug and explosive powder


Special features:

  • Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time,
  • Safety ray: Ray is transmitted under automatic control, avoiding the error,
  • One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
  • Eagle eye: Capable of expediently observing the magnifying area
  • Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Our Services:
  • One-to-one exclusive service
  • Online diagnosis service for after-sales service
  • 24 months warranty for providing free spare parts
  • Free training in factory for your engineer
  • Accept arranging engineer go abroad for trainning should be paid
  • Tender protection with authorization certificate

Competitive Advantage:

  • Innovative & Economical

  • World Class Reliability
  • Long-Term Flexibility
  • Ease of Use Increases Efficiencies
  • Ease of Maintenance
  • Competitive Price and Professional Service

560 * 360 Mm Security Check Airport Baggage Scanner With 0.22m/S Conveyor Speed 0
