0.22m /S Airport Baggage Scanner Stable Performance For Security Check

China 0.22m /S Airport Baggage Scanner Stable Performance For Security Check supplier

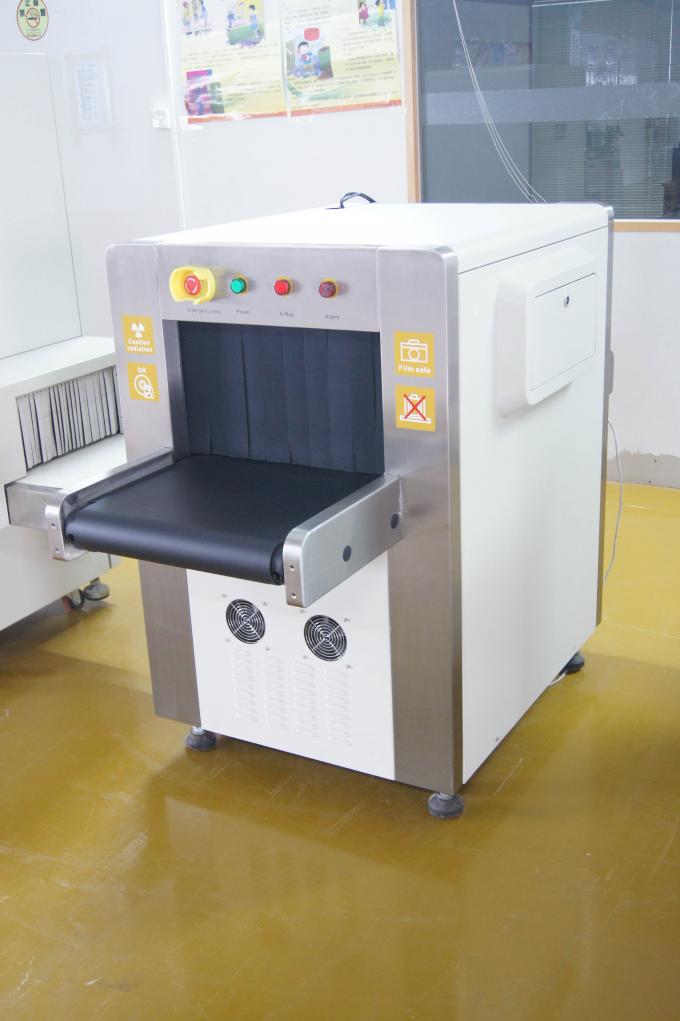

Large Image :  0.22m /S Airport Baggage Scanner Stable Performance For Security Check

Product Details:

Place of Origin: China
Brand Name: Uniqscan
Certification: CE ISO
Model Number: SF6040

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: negotiation
Packaging Details: Wooden box
Delivery Time: in one week
Payment Terms: T/T
Supply Ability: 100sets per month
Contact Now
Detailed Product Description
Product Name:: X Ray Security Systems Tunnel Size: 600(W)*400(H)mm
Penetration:: 40mm Steel Detector:: L-shaped Array
Leakage Radiation:: <0.06µGy/h Conveyor Max Load: 150KG
Resolution: 40AWG Tube Current:: 0.7~1.2mA



0.22m/s Airport Baggage Scanner With Guarantee ISO1600 Film for Security Check



Competitive Advantage:

  • Innovative & Economical

  • World Class Reliability
  • Long-Term Flexibility
  • Ease of Use Increases Efficiencies
  • Ease of Maintenance
  • Competitive Price and Professional Service

General Specifications:



Tunnel Size 600(W)*400(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 150kg
Dose per Inspection <1.0uGy/h
Resolution 40AWG
Spatial resolution Level diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution φ0.254mm
Penetration 40mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.1 uGy/h (at a distance of 5cmFrom external housing)



X-Ray Generator Specifications:



Anode Voltage: 140~160KV
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Upward
Detector: L-shaped Array
Tube Current: 0.7~1.2mA



Image Display:

  • 19’’ High Resolution LCD Monitor
  • Display Resolution: 1280*1024;24 bit/pixel Color
  • Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
  • Image storage: 100,000 pictures in real time (can be customized)
  • Zoom: 64 Times Enlarge, Whole screen continuous observation
  • Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
  • Edge enhancement: Object contour edge is more distinct
  • Super image enhancement: Image detail is more distinct
  • High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
  • Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
  • Brightening/dimming: Increase/Decrease brightness of image
  • Image recurrence: Display the previous twenty images and process any one of them
  • Image restoration: Restore image to initial status
  • Assist to detect drug and explosive powder

Special features:

  • Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
  • Safety ray: Ray is transmitted under automatic control, avoiding the error
  • One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
  • Eagle eye: Capable of expediently observing the magnifying area
  • Self-diagnosis function: Give message automatically if malfunction for prompt maintenanceTIP and training software

Environment Specifications:

  • Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
  • Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

Applications:

  • Commercial buildings
  • Factories(to find needle in clothing, shoes, bags)
  • Courthouses
  • Embassies
  • Government buildings
  • Military installations
  • Prisons
  • Hotels
  • Schools
  • Convention centers
  • Security checkpoints
