6 Zones Gate Metal Detectors For Security , Airport Metal Detectors With 5 Digital LED Count

6 Zones Gate Metal Detectors For Security , Airport Metal Detectors With 5 Digital LED Count
6 Zones Gate Metal Detectors For Security , Airport Metal Detectors With 5 Digital LED Count

Large Image :  6 Zones Gate Metal Detectors For Security , Airport Metal Detectors With 5 Digital LED Count

Product Details:
Place of Origin: China
Brand Name: Uniqscan
Certification: CE,ISO
Model Number: UB500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton or wooden
Delivery Time: 100pcs/week
Payment Terms: Western Union, T/T, L/C
Detailed Product Description
Product Name: Walk Through Security Metal Detectors Sensitivity: Each Zone Has 100 Sensitivity Level
Display Way: 5 Digital LED Count Working Frequency: 4KHZ—8KHZ
Power Supply: AC85V-264V Warranty: 2 Years
Certification: CE, ISO Weight: 65kg
High Light:

walk through body scanners

,

pass through metal detector

Best price 6 zones Archway Metal detector with 5 digital LED count







Parameters :



Detecting zone: 6 zone
Display way: 5 digital LED count
Sensitivity: 0-100 adjustable
Power Supply: AC85V-264V
Working temperature: -20℃--+50℃
Working Frequency: 4KHZ—8KHZ
Gross weight: 70KG
Warranty: 2 years

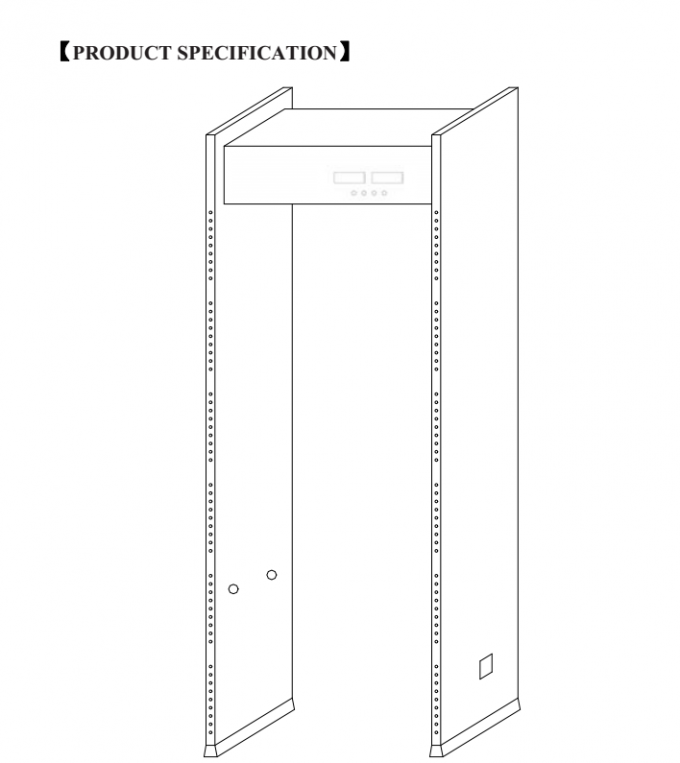

Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn





Characteristic & Function

  • Six mutual over-lapping detecting zones, Simultaneous alarm from multi- zones;
  • Sensitivity adjustable: Each zone has 100 sensitivity level
  • Sound & LED alarm: Both Side LED indicator ,easily show where the metal is.
  • Automatically count passengers and alarm times
  • Alarm strength indicator on control panel
  • Password protection, only the authorized person can operate.
  • Easy assembly: designed with only 2 pieces cables and 8 screws, simply-to-follow instruction.
  • Harmless to human body: is harmless with heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.
  • Using high density fireproof material
  • Program Self-diagnostic when power on,no need initial or periodic calibration
  • Modularization design,easy for maintenance and replacement.
  • Sensitivity Test piece: One yuan Coin, omnidirectional detection
  • 4-8 hours backup battery (Option)
  • Do change of packing box ,take off the foot cover to make it smaller to save shipping cost.
  • A 20 feet container can load about 90 pcs uniqscan detector ,but others about 60-70 pcs.





Application

Exhibition center, Electronic Factory, Bank, Prison, Government office,Hotel etc
