| Product Name: | Entrance Turnstile Gate | Arm Length: | 500mm(norm) |
|---|---|---|---|
| Thickness: Head: | 1.5mm , Cabinet:1.2mm | Driving Motor: | 24V |
| Weight: | 45kg | Traffic Speed: | 35 Persons/min |
| Failure-free Operation: | 5 Million/time | Input Voltage: | AC220±10%,50HZ |
| Material: | 304 # Stainless Steel | Dimension: | 420*330*980mm |
| High Light: | Double Tripod Barrier Turnstile,fingerprint Tripod Barrier Turnstile,fingerprint Turnstile Entrance Gates |
||

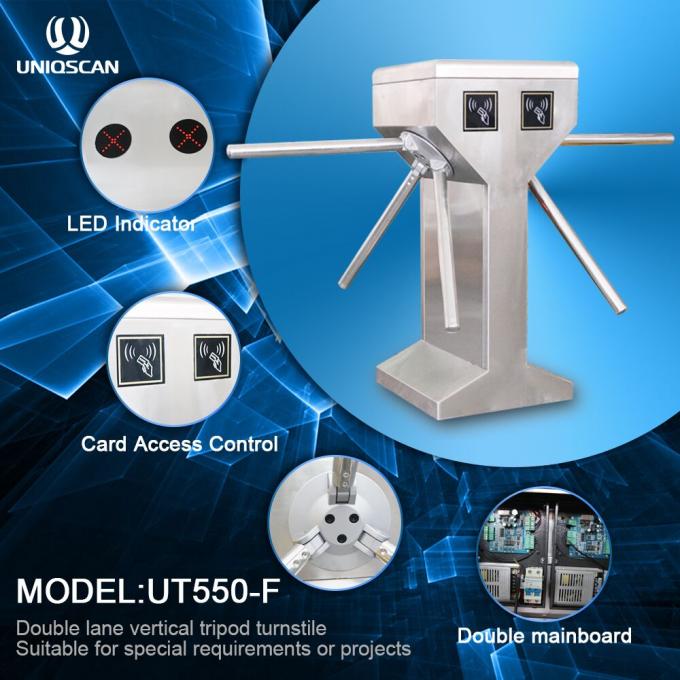

fingerprint Double Tripod Barrier Turnstile Entrance Gates For School Metro
UNIQSCAN double tripod turnstile entrance turnstile turnstilee
Semi Auto Bridge Tripod Turnstile Security Gates
Product Introduction:
1. This series of turnstile adopt the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of turnstile adopt standard electricity socket. It can read boom code card, ID card, IC card and so on.
2. There is a series of turnstiles. You can choose the item and specificalion. They can be used in school, metro and chamber and so on. This series is of very high-tech. In order lo guarantee it can run safely, please carefully read this instruclion!
Technical Parameters :
| Model | UT550-F |
| Brand | UNIQSCAN |
| Dimension | 420*330*980mm |
| Arm length | 500mm(norm) |
| Material | 304 # stainless steel |
| Thickness | Head: 1.5mm , Cabinet:1.2mm |
| Input Voltage | AC220±10%,50HZ |
| Driving motor | 24V |
| Failure-free operation | 5 million/time |
| Weight | 45kg |
| Traffic speed | 35 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤550mm |
| Operating temperature | -30ºC-70ºC |
| Communication interface | RS485/TCP/IP |
| Working environment | indoor and outdoor |
Scope:
Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.
Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.
Consumption system: Combine with IC card readers, apply to super market, cantine, gym, subway, bus station.
Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..
Construction system: Combine with CCTV/LED screens, apply to contruction site for safty.
ESD system: Combine with profession ESD tester for factory, special area entrance.
